Hersteller: GEWISS SPA
Category: Enclosures - Other Accessories
Description: Connecting device; IP54; grey; twistable; Pitch: 1.5; Øcable: 28mm
Thread pitch: 1.5
Kind of thread: metric
Colour: grey
Type of enclosures accessories: connecting device
Version: twistable
IP rating: IP54
Gland thread: M32
Cable external diameter: 28mm
Thread length: 17.5mm

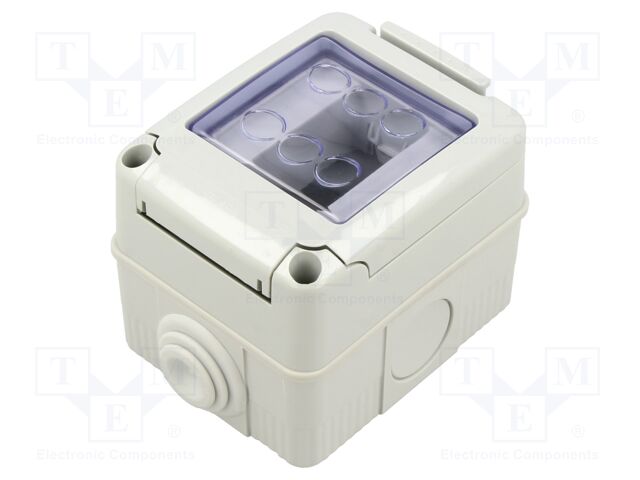

Hersteller: GEWISS SPA
Category: Modular Aparatus Enclosures
Description: Enclosure: for modular components; IP55; for wall mounting; grey
Kit contents: Cable gland
Conform to the norm: EN 60670 - 1
Mounting: for wall mounting
Type of enclosure: for modular components
Body colour: grey
IP rating: IP55
Operating temperature: -25...60°C
Dimension Z: 65mm
Dimension X: 66mm
Dimension Y: 82mm
Number of modules: 2
Manufacturer series: 27 COMBI

Hersteller: GEWISS SPA
Category: Modular Aparatus Enclosures
Description: Enclosure: for modular components; IP65; wall mount; grey; 40 CD
Manufacturer series: 40 CD
Mounting: wall mount
Type of enclosure: for modular components
Body colour: grey
Kit contents: hole plugs
IP rating: IP65
Operating temperature: -25...60°C
Dimension Z: 140mm
Dimension Y: 285mm
Dimension X: 410mm
Number of modules: 18
Conform to the norm: EN 60670 - 1

Hersteller: GEWISS SPA
Category: Junction boxes
Description: Enclosure: junction box; X: 215.5mm; Y: 270.5mm; Z: 98mm; wall mount
Version: with membrane cable glands
Cover colour: grey
Body colour: grey
Kit contents: hole plugs
Mechanical impact resistance: IK08
IP rating: IP55
Type of enclosure: junction box
Mounting: wall mount
Enclosure material: technopolymer
Operating temperature: -25...60°C
Dimension Z: 98mm
Dimension X: 215.5mm
Dimension Y: 270.5mm
Number of holes: 12
Manufacturer series: 44 CE

Hersteller: GEWISS SPA
Category: Modular Aparatus Enclosures
Description: Enclosure: for modular components; IP66; grey; No.of mod: 140
Conform to the norm: IEC 60670-24; PN EN 61439-1
Version: with doors
Type of enclosure: for modular components
Body colour: grey
Cover colour: grey
Mechanical impact resistance: IK10
IP rating: IP66
Enclosure material: polyester
Operating temperature: -25...60°C
Dimension Z: 300mm
Dimension X: 591mm
Dimension Y: 804mm
Number of modules: 140
Manufacturer series: 46

Hersteller: GEWISS SPA
Category: Glands
Description: Cable gland; membrane; IP55; polymer; 48mm; grey
Body material: polymer
Operating temperature: -5...60°C
IP rating: IP55
Cable gland version: membrane
Cable external diameter: 40mm
Panel cutout diameter: 48mm
Type of cable accessories: cable gland
Colour: grey

Hersteller: GEWISS SPA
Category: Modular Aparatus Enclosures
Description: Enclosure: for modular components; IP65; wall mount; grey
Manufacturer series: 68 Q-DIN
Type of enclosure: for modular components
Body colour: grey
IP rating: IP65
Mounting: wall mount
Operating temperature: -25...40°C
Dimension Z: 96mm
Dimension X: 105mm
Dimension Y: 337mm
Number of sockets: 2
Number of modules: 5
Conform to the norm: EN 62208
Kit contents: clamps; nut x2

Hersteller: GEWISS SPA
Category: Junction boxes
Description: Enclosure: junction box; X: 165.5mm; Y: 140.5mm; Z: 63.5mm; grey
Mounting: wall mount
Body colour: grey
Type of enclosure: junction box
Dimension Y: 140.5mm
Dimension X: 165.5mm
Dimension Z: 63.5mm
Manufacturer series: GWconnect
Enclosure material: aluminium

Hersteller: GEWISS SPA
Category: Junction boxes
Description: Enclosure: junction box; X: 189mm; Y: 167mm; Z: 80mm; wall mount
Mounting: wall mount
Manufacturer series: GWconnect
Body colour: grey
Mechanical impact resistance: IK08
IP rating: IP66
Type of enclosure: junction box
Dimension Z: 80mm
Dimension Y: 167mm
Dimension X: 189mm
Enclosure material: aluminium
