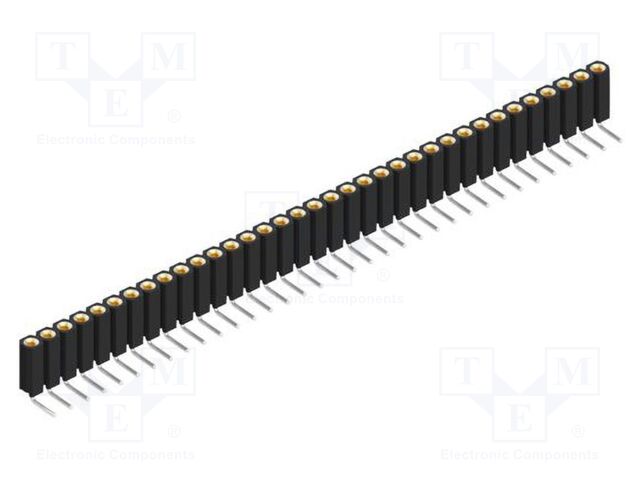

10026834 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 35; BL 7; 3A; 150V; THT, Operating temperature: -40...163°C, Leads dimensions: L 3.2mm, Current rating: 3A, Flammability rating: UL94V-0, Height: 2.54mm, Number of pins: 35, Contact material: beryllium copper, Connector pinout layout: 1x35, Connector variant: precision; turned contacts, Contacts pitch: 2.54mm, Overall length: 5.74mm, Electrical mounting: THT, Manufacturer series: BL 7, Plating thickness: 0.75µm, Spatial orientation: angled, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, Rated voltage: 150V, Anzahl je Verpackung: 1 Stücke.
