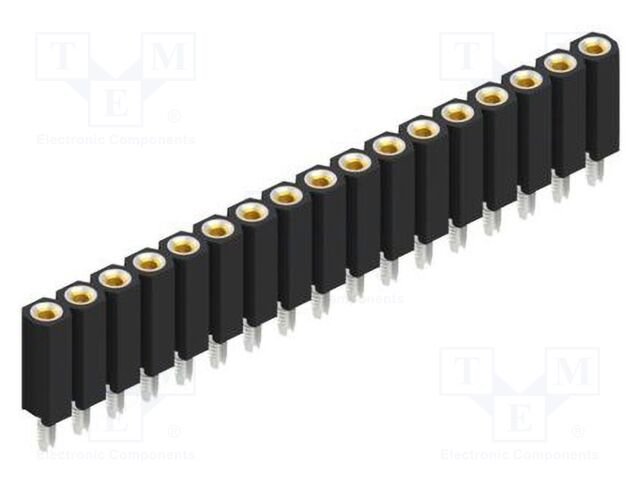

10027590 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 17; BLP 1; 2A; 150V; THT, Manufacturer series: BLP 1, Kind of connector: female, Contact plating: gold-plated, Type of connector: pin strips, Connector: socket, Connector variant: precision; turned contacts, Electrical mounting: THT, Flammability rating: UL94V-0, Operating temperature: -40...163°C, Plating thickness: 0.75µm, Lead length: 2.5mm, Contacts pitch: 2.54mm, Height: 7mm, Overall length: 9.5mm, Current rating: 2A, Number of pins: 17, Connector pinout layout: 1x17, Rated voltage: 150V, Spatial orientation: straight, Contact material: beryllium copper, Anzahl je Verpackung: 1 Stücke.
