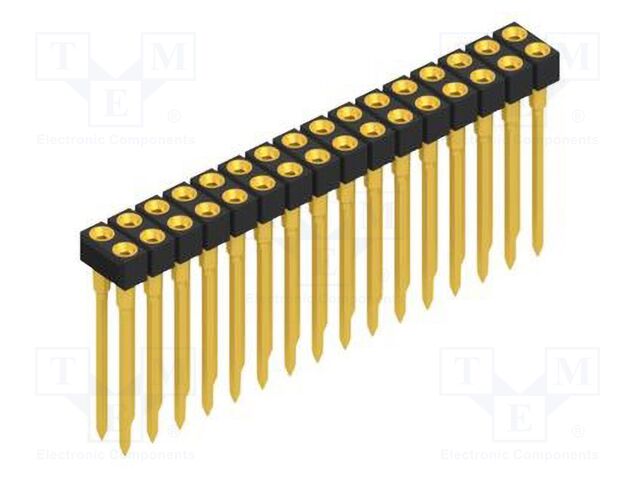

10041630 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 32; MK 207; 1.5A; 60V, Operating temperature: -40...163°C, Rated voltage: 60V, Current rating: 1.5A, Flammability rating: UL94V-0, Height: 5.5mm, Number of pins: 32, Contact material: beryllium copper, Connector pinout layout: 2x16, Connector variant: precision; turned contacts, Contacts pitch: 2.54mm, Overall length: 17.9mm, Electrical mounting: THT, Lead length: 12.4mm, Row pitch: 2.54mm, Manufacturer series: MK 207, Plating thickness: 0.75µm, Spatial orientation: straight, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, Anzahl je Verpackung: 1 Stücke.
