Produkte > ELECTRO-PJP > 2317-IEC-200JV
2317-IEC-200JV
  • 2317-IEC-200JV
  • 2317-IEC-200JV
  • 2317-IEC-200JV

2317-IEC-200JV ELECTRO-PJP

pVersion=0046&contRep=ZT&docId=005056AB281E1FD09697095CE13740E1&compId=Datasheet_2310-IEC.pdf?ci_sign=0241892638f30be2d7c2f68a1447c0b070fa670c Hersteller: ELECTRO-PJP
Category: Single Test Leads

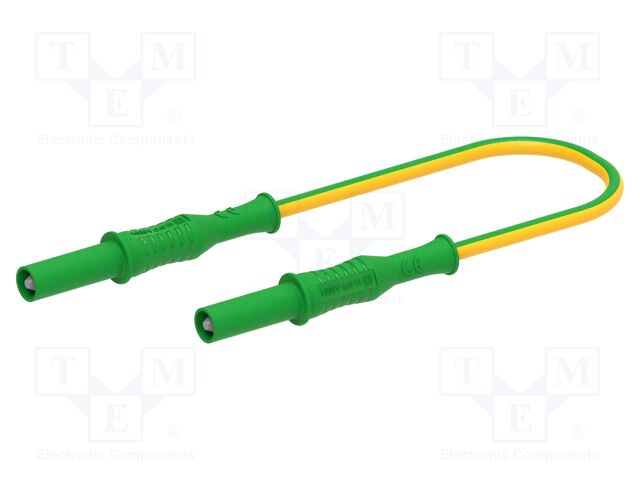

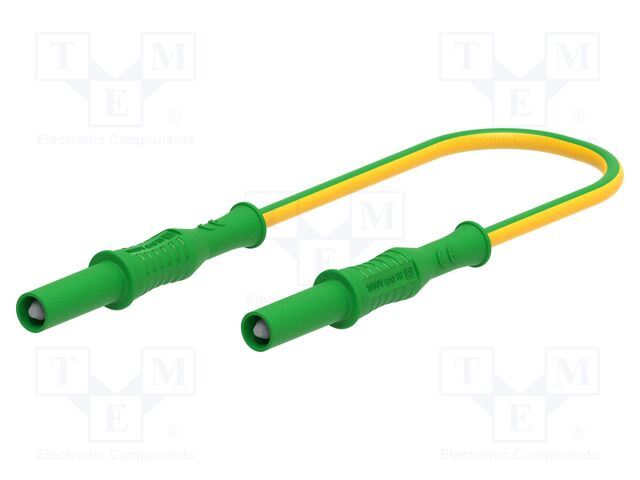

Description: Test lead; 36A; banana plug 4mm,both sides; insulated; Len: 2m
Type of test accessories: test lead
Current rating: 36A
Test lead configuration: banana plug 4mm; both sides
Connector variant: insulated
Cable length: 2m
Colour: yellow-green
Wire cross-section: 2.5mm2
Conform to the norm: CAT II 1000V; CAT III 1000V; CAT IV 600V; EN 60529
Operating temperature: -20...80°C
Contact material: brass
Contact plating: nickel plated
Wire insulation material: PVC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 2317-IEC-200JV ELECTRO-PJP

Category: Single Test Leads, Description: Test lead; 36A; banana plug 4mm,both sides; insulated; Len: 2m, Type of test accessories: test lead, Current rating: 36A, Test lead configuration: banana plug 4mm; both sides, Connector variant: insulated, Cable length: 2m, Colour: yellow-green, Wire cross-section: 2.5mm2, Conform to the norm: CAT II 1000V; CAT III 1000V; CAT IV 600V; EN 60529, Operating temperature: -20...80°C, Contact material: brass, Contact plating: nickel plated, Wire insulation material: PVC.
