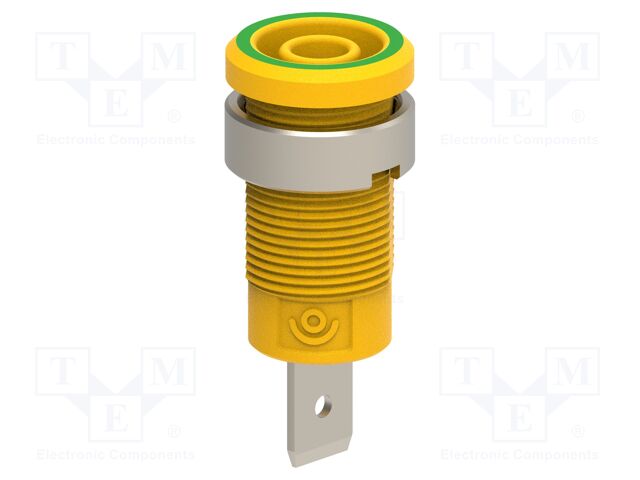

3266-C-JV ELECTRO-PJP

pVersion=0046&contRep=ZT&docId=005056AB281E1FD096970ED5C3CF20E1&compId=Datasheet_3266-C.pdf?ci_sign=01f0d119b1521e8fc9e4dee4987f8a7ebe357419

Hersteller: ELECTRO-PJP
Category: 4mm Banana Sockets
Description: Connector: 4mm banana; socket; 36A; yellow-green; nickel plated
Type of lab connector: 4mm banana
Connector: socket
Current rating: 36A
Colour: yellow-green
Contact plating: nickel plated
Mounting: faston terminal
Connector variant: insulated
Conform to the norm: CAT II 1000V; CAT III 1000V; CAT IV 600V; EN 60529; EN 61010-1:2010; EN 61010-031
Overall length: 34mm
Contact material: brass
Operating temperature: -20...80°C

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details 3266-C-JV ELECTRO-PJP

Category: 4mm Banana Sockets, Description: Connector: 4mm banana; socket; 36A; yellow-green; nickel plated, Type of lab connector: 4mm banana, Connector: socket, Current rating: 36A, Colour: yellow-green, Contact plating: nickel plated, Mounting: faston terminal, Connector variant: insulated, Conform to the norm: CAT II 1000V; CAT III 1000V; CAT IV 600V; EN 60529; EN 61010-1:2010; EN 61010-031, Overall length: 34mm, Contact material: brass, Operating temperature: -20...80°C.
