Produkte > COMUS > 3570.1429.052

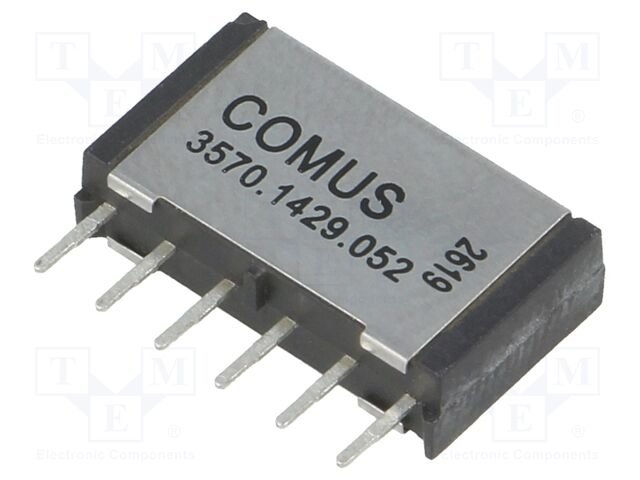

3570.1429.052

3570.1429.052 COMUS


pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B6BE7532A42DC0C4&compId=3570-1429.pdf?ci_sign=f57b97e4bf7987d54bc9886b47dc4cef12d4a724 Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 15W; THT
Mounting: THT
Case: SIP
Coil voltage max.: 7V DC
Switched voltage: max. 200V DC
Contact current max.: 1A
Switching capacity: 15W
Contact resistance: 0.15Ω
Relay features: high reliability
Optional equipment: electrostatic shield
Manufacturer series: 3570
Type of relay: reed switch
Body dimensions: 15.2x8.89x3.81mm
Terminal pitch: 2.54mm
Coil resistance: 375Ω
Contacts configuration: DPST-NO
Operating temperature: -40...85°C
Rated coil voltage: 5V DC
Coil voltage min.: 3.8V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 55 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
15+4.85 EUR
17+4.45 EUR
18+4.20 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 3570.1429.052 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 15W; THT, Mounting: THT, Case: SIP, Coil voltage max.: 7V DC, Switched voltage: max. 200V DC, Contact current max.: 1A, Switching capacity: 15W, Contact resistance: 0.15Ω, Relay features: high reliability, Optional equipment: electrostatic shield, Manufacturer series: 3570, Type of relay: reed switch, Body dimensions: 15.2x8.89x3.81mm, Terminal pitch: 2.54mm, Coil resistance: 375Ω, Contacts configuration: DPST-NO, Operating temperature: -40...85°C, Rated coil voltage: 5V DC, Coil voltage min.: 3.8V DC, Anzahl je Verpackung: 1 Stücke.
