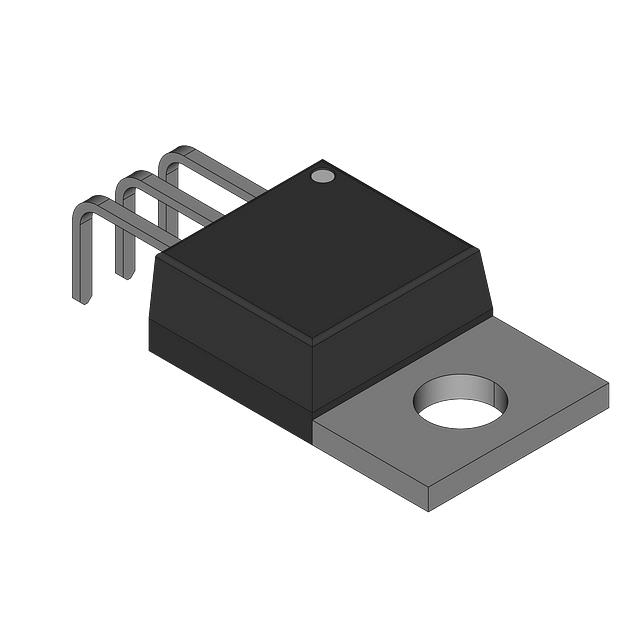

BUK753R8-80E,127 NXP USA Inc.
Hersteller: NXP USA Inc.Description: TRANSISTOR >30MHZ
Packaging: Tube
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
Rds On (Max) @ Id, Vgs: 4mOhm @ 25A, 10V
Power Dissipation (Max): 349W (Tc)
Vgs(th) (Max) @ Id: 4V @ 1mA
Supplier Device Package: TO-220AB
Grade: Automotive
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 169 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 12030 pF @ 25 V
Qualification: AEC-Q101
auf Bestellung 1749 Stücke:
Lieferzeit 21-28 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 256+ | 2.83 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BUK753R8-80E,127 NXP USA Inc.
Description: MOSFET N-CH 80V 120A TO220AB, Packaging: Tube, Package / Case: TO-220-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 175°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 120A (Tc), Rds On (Max) @ Id, Vgs: 4mOhm @ 25A, 10V, Power Dissipation (Max): 349W (Tc), Vgs(th) (Max) @ Id: 4V @ 1mA, Supplier Device Package: TO-220AB, Part Status: Obsolete, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 80 V, Gate Charge (Qg) (Max) @ Vgs: 169 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 12030 pF @ 25 V, Grade: Automotive, Qualification: AEC-Q101.
Weitere Produktangebote BUK753R8-80E,127
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
|---|---|---|---|---|---|
 |
BUK753R8-80E,127 | Hersteller : NEXPERIA |
Trans MOSFET N-CH 80V 120A Automotive 3-Pin(3+Tab) TO-220AB Rail |
Produkt ist nicht verfügbar |
|
 |
BUK753R8-80E,127 | Hersteller : Nexperia USA Inc. |
Description: MOSFET N-CH 80V 120A TO220AB Packaging: Tube Package / Case: TO-220-3 Mounting Type: Through Hole Operating Temperature: -55°C ~ 175°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 120A (Tc) Rds On (Max) @ Id, Vgs: 4mOhm @ 25A, 10V Power Dissipation (Max): 349W (Tc) Vgs(th) (Max) @ Id: 4V @ 1mA Supplier Device Package: TO-220AB Part Status: Obsolete Drive Voltage (Max Rds On, Min Rds On): 10V Vgs (Max): ±20V Drain to Source Voltage (Vdss): 80 V Gate Charge (Qg) (Max) @ Vgs: 169 nC @ 10 V Input Capacitance (Ciss) (Max) @ Vds: 12030 pF @ 25 V Grade: Automotive Qualification: AEC-Q101 |
Produkt ist nicht verfügbar |
