Produkte > AUTONICS > CT6S-1P4

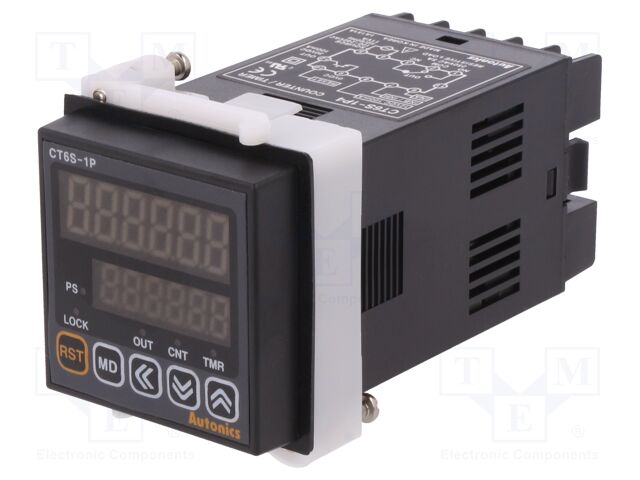

CT6S-1P4

CT6S-1P4 AUTONICS


CT-series.pdf CT-series-INS1.pdf CT-series-INS2.pdf Hersteller: AUTONICS
Category: Impulse Counters
Description: Counter: electronical; LED x2; time/pulses; SPDT; IN 1: NPN,PNP
Kind of output 1: SPDT
Kind of input 1: NPN; PNP
Kind of input 2: NPN; PNP
Mounting: on panel
Manufacturer series: CT
Output 1 electrical parameters: 30V DC / 5A; 250V AC / 5A
Operating temperature: -10...55°C
Supply voltage: 100...240V AC
Mounting hole diameter: 45x45mm
Kind of display used: LED x2
Display height 1: 10mm
Display 2 height: 7mm
Electrical connection: screw terminals
Power supply: external
Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time
Resetting method: electrical; locking possibility; manual
IN2 max counting frequency: 10kHz
Max IN1 counting frequency: 10kHz
Kind of counter: progressive/reversing
Type of counter: electronical
Type of counted signal: time/pulses
Body dimensions: 48x48x100mm
The additional control inputs: RESET
Counting range: 0,001s...99999,9h / 999999
Number of operation modes: 15
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
2+65.99 EUR
Mindestbestellmenge: 2
Produktrezensionen
Produktbewertung abgeben

Technische Details CT6S-1P4 AUTONICS

Category: Impulse Counters, Description: Counter: electronical; LED x2; time/pulses; SPDT; IN 1: NPN,PNP, Kind of output 1: SPDT, Kind of input 1: NPN; PNP, Kind of input 2: NPN; PNP, Mounting: on panel, Manufacturer series: CT, Output 1 electrical parameters: 30V DC / 5A; 250V AC / 5A, Operating temperature: -10...55°C, Supply voltage: 100...240V AC, Mounting hole diameter: 45x45mm, Kind of display used: LED x2, Display height 1: 10mm, Display 2 height: 7mm, Electrical connection: screw terminals, Power supply: external, Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time, Resetting method: electrical; locking possibility; manual, IN2 max counting frequency: 10kHz, Max IN1 counting frequency: 10kHz, Kind of counter: progressive/reversing, Type of counter: electronical, Type of counted signal: time/pulses, Body dimensions: 48x48x100mm, The additional control inputs: RESET, Counting range: 0,001s...99999,9h / 999999, Number of operation modes: 15, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote CT6S-1P4 nach Preis ab 65.99 EUR bis 65.99 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
CT6S-1P4 CT6S-1P4 Hersteller : AUTONICS CT-series.pdf CT-series-INS1.pdf CT-series-INS2.pdf Category: Impulse Counters
Description: Counter: electronical; LED x2; time/pulses; SPDT; IN 1: NPN,PNP
Kind of output 1: SPDT
Kind of input 1: NPN; PNP
Kind of input 2: NPN; PNP
Mounting: on panel
Manufacturer series: CT
Output 1 electrical parameters: 30V DC / 5A; 250V AC / 5A
Operating temperature: -10...55°C
Supply voltage: 100...240V AC
Mounting hole diameter: 45x45mm
Kind of display used: LED x2
Display height 1: 10mm
Display 2 height: 7mm
Electrical connection: screw terminals
Power supply: external
Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time
Resetting method: electrical; locking possibility; manual
IN2 max counting frequency: 10kHz
Max IN1 counting frequency: 10kHz
Kind of counter: progressive/reversing
Type of counter: electronical
Type of counted signal: time/pulses
Body dimensions: 48x48x100mm
The additional control inputs: RESET
Counting range: 0,001s...99999,9h / 999999
Number of operation modes: 15
auf Bestellung 15 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
2+65.99 EUR
Mindestbestellmenge: 2
CT6S-1P4 CT6S-1P4 Hersteller : AUTONICS 1756241.pdf Description: AUTONICS - CT6S-1P4 - COUNTER, DIGITAL, 6DIGIT, 240VAC/48VDC
tariffCode: 90328900
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Höhe des Frontplattenausschnitts: 45.5mm
usEccn: 3A992.a
Betriebstemperatur, min.: -10°C
Versorgungsspannung, min.: 100VAC
Breite des Frontplattenausschnitts: 45.5mm
euEccn: NLR
Ziffernhöhe: 10mm
Produktpalette: CT Series
productTraceability: No
Versorgungsspannung, max.: 240VAC
Betriebstemperatur, max.: 55°C
Anzahl der Ziffern / Zeichen: 6
directShipCharge: 25
SVHC: No SVHC (17-Dec-2014)
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
CT6S-1P4 CT6S-1P4 Hersteller : Autonics CT.pdf Description: COUNTER TIMER 100-240VAC
auf Bestellung 158 Stücke:
Lieferzeit 10-14 Tag (e)
