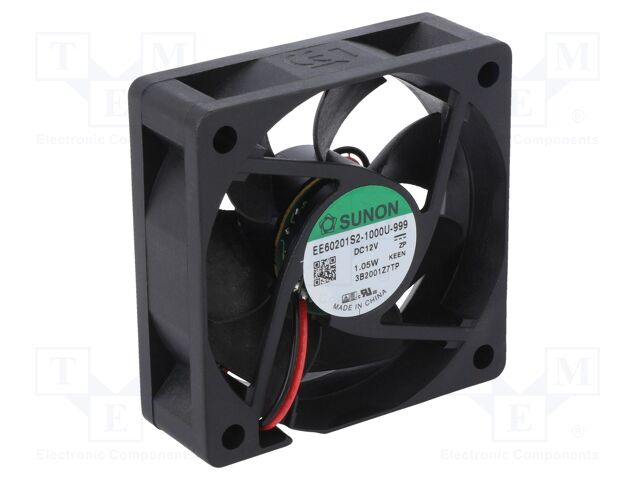

EE60201S2-1000U-999 SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x20mm; 31.43m3/h; 26.3dBA; 3900rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 60x60x20mm
Power consumption: 0.99W
Current rating: 82mA
Fan efficiency: 31.43m3/h
Noise level: 26.3dBA
Kind of Bearing: slide bearing
Rotational rate/speed: 3900rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.29m
Flammability rating: UL94V-0
Fan motor: brushless DC
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x20mm; 31.43m3/h; 26.3dBA; 3900rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 60x60x20mm
Power consumption: 0.99W
Current rating: 82mA
Fan efficiency: 31.43m3/h
Noise level: 26.3dBA
Kind of Bearing: slide bearing
Rotational rate/speed: 3900rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.29m
Flammability rating: UL94V-0
Fan motor: brushless DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 244 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
16+ | 4.58 EUR |
18+ | 4.15 EUR |
50+ | 3.86 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EE60201S2-1000U-999 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x20mm; 31.43m3/h; 26.3dBA; 3900rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 60x60x20mm, Power consumption: 0.99W, Current rating: 82mA, Fan efficiency: 31.43m3/h, Noise level: 26.3dBA, Kind of Bearing: slide bearing, Rotational rate/speed: 3900rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.29m, Flammability rating: UL94V-0, Fan motor: brushless DC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote EE60201S2-1000U-999 nach Preis ab 3.86 EUR bis 4.58 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EE60201S2-1000U-999 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 60x60x20mm; 31.43m3/h; 26.3dBA; 3900rpm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 60x60x20mm Power consumption: 0.99W Current rating: 82mA Fan efficiency: 31.43m3/h Noise level: 26.3dBA Kind of Bearing: slide bearing Rotational rate/speed: 3900rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.29m Flammability rating: UL94V-0 Fan motor: brushless DC |
auf Bestellung 244 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
EE60201S2-1000U-999 | Hersteller : Sunon Fans |
Description: FAN AXIAL Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Sleeve RPM: 3900 RPM Air Flow: 18.5 CFM (0.518m³/min) Width: 20.00mm Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 26.3dB(A) Static Pressure: 0.140 in H2O (34.9 Pa) Power (Watts): 990 mW |
Produkt ist nicht verfügbar |
||||||||||
EE60201S2-1000U-999 | Hersteller : Sunon | DC Fans DC Axial Fan, 60x60x20mm, 12VDC, Sleeve, Lead Wires, MagLev Motor, 201706-MP |
Produkt ist nicht verfügbar |
