Produkte > SUNON > EF60252S1-1000U-A99
EF60252S1-1000U-A99

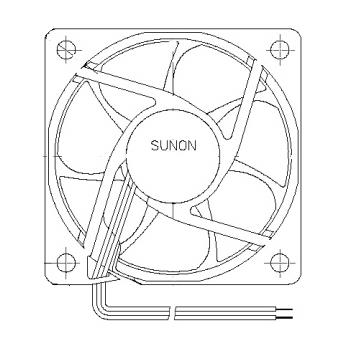

EF60252S1-1000U-A99 SUNON


EF60252S1-A99.pdf Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x25mm; 39.93m3/h; 27dBA; slide bearing
Related items: SRF4-30
Current rating: 50mA
Supply voltage: 24V DC
Leads: lead x2
Operating voltage: 8...27.6V
Type of fan: DC
Fan dimensions: 60x60x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: slide bearing
Fan efficiency: 39.93m3/h
Noise level: 27dBA
Rotational rate/speed: 4500rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.25W
Enclosure material: thermoplastic
Wire size: 26AWG
Cable length: 0.29m
Operating temperature: -10...70°C
Additional functions: Autorestart
Min. insulation resistance: 10MΩ
Kind of fan: axial
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1151 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
17+4.43 EUR
20+ 3.72 EUR
50+ 3.29 EUR
200+ 2.72 EUR
Mindestbestellmenge: 17
Produktrezensionen
Produktbewertung abgeben

Technische Details EF60252S1-1000U-A99 SUNON

Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 60x60x25mm; 39.93m3/h; 27dBA; slide bearing, Related items: SRF4-30, Current rating: 50mA, Supply voltage: 24V DC, Leads: lead x2, Operating voltage: 8...27.6V, Type of fan: DC, Fan dimensions: 60x60x25mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: slide bearing, Fan efficiency: 39.93m3/h, Noise level: 27dBA, Rotational rate/speed: 4500rpm, Current and power consumption tolerance: ±15%, Power consumption: 1.25W, Enclosure material: thermoplastic, Wire size: 26AWG, Cable length: 0.29m, Operating temperature: -10...70°C, Additional functions: Autorestart, Min. insulation resistance: 10MΩ, Kind of fan: axial, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote EF60252S1-1000U-A99 nach Preis ab 2.72 EUR bis 17.86 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
EF60252S1-1000U-A99 EF60252S1-1000U-A99 Hersteller : SUNON EF60252S1-A99.pdf Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x25mm; 39.93m3/h; 27dBA; slide bearing
Related items: SRF4-30
Current rating: 50mA
Supply voltage: 24V DC
Leads: lead x2
Operating voltage: 8...27.6V
Type of fan: DC
Fan dimensions: 60x60x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: slide bearing
Fan efficiency: 39.93m3/h
Noise level: 27dBA
Rotational rate/speed: 4500rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.25W
Enclosure material: thermoplastic
Wire size: 26AWG
Cable length: 0.29m
Operating temperature: -10...70°C
Additional functions: Autorestart
Min. insulation resistance: 10MΩ
Kind of fan: axial
auf Bestellung 1151 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
17+4.43 EUR
20+ 3.72 EUR
50+ 3.29 EUR
200+ 2.72 EUR
Mindestbestellmenge: 17
EF60252S1-1000U-A99 EF60252S1-1000U-A99 Hersteller : Sunon Fans sunonap.sunon_html_d_pkg.open_file?input_file_name=7264646F632F3230313731322F3236363933342F28443036303836383830472D3030292D302E706466 Description: FAN AXIAL 60X25MM 24VDC WIRE
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 24VDC
Size / Dimension: Square - 60mm L x 60mm H
Bearing Type: Sleeve
RPM: 4500 RPM
Air Flow: 23.5 CFM (0.658m³/min)
Width: 25.00mm
Weight: 0.101 lb (45.81 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 27.0dB(A)
Static Pressure: 0.210 in H2O (52.3 Pa)
Part Status: Active
Power (Watts): 1.2 W
auf Bestellung 293 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
2+13.16 EUR
10+ 12.72 EUR
160+ 10.44 EUR
Mindestbestellmenge: 2
EF60252S1-1000U-A99 EF60252S1-1000U-A99 Hersteller : Sunon Sunon_10192018_EF60252S1-1000U-A99-1488851.pdf DC Fans Axial Fan, 60x60x25mm, 24VDC, 23.5CFM, 0.21"H2O, Sleeve, Wire, Auto Restart
auf Bestellung 189 Stücke:
Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
3+17.86 EUR
10+ 17.08 EUR
25+ 16.07 EUR
50+ 15.42 EUR
100+ 14.22 EUR
250+ 13.31 EUR
480+ 13.08 EUR
Mindestbestellmenge: 3
