Produkte > DANFOSS > FC-280P1K1T4E20H1BXCXXXSXXXXAX

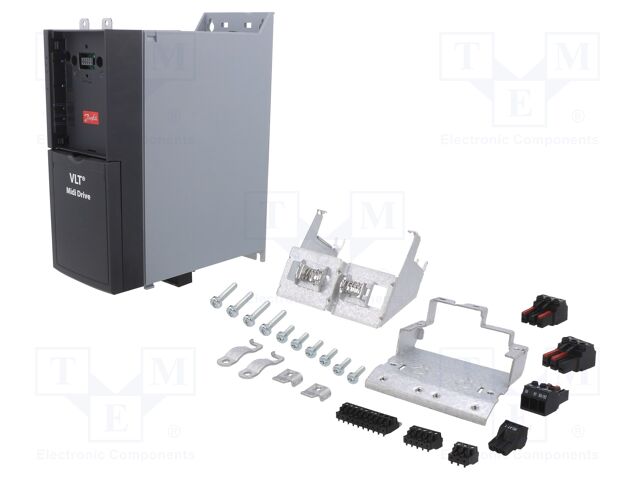

FC-280P1K1T4E20H1BXCXXXSXXXXAX

FC-280P1K1T4E20H1BXCXXXSXXXXAX DANFOSS


VLT-Midi-Drive-FC-280-EN.pdf Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 1.1kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current rating: 3A
Type of module: vector inverter
Number of analog inputs: 2
Number of analog outputs: 1
The programming method: keypad; PC
Max motor power: 1.1kW
Protection: anti-overload OPP; short circuit protection SCP
Output frequency: 0...500Hz
Voltage between phases (for three phase system): 3 x 380...480V AC
Inverter output voltage: 3 x 400V AC
Driver features: integrated brake transistor; integrated EMC filter
Current output: 0/4mA...20mA
Number of inputs: 11
Electrical connection: screw terminals
Body dimensions: 210x75x168mm
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Produktrezensionen
Produktbewertung abgeben

Technische Details FC-280P1K1T4E20H1BXCXXXSXXXXAX DANFOSS

Category: Three Phase Inverters, Description: Vector inverter; 1.1kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz, Mounting: for DIN rail mounting; for wall mounting, Manufacturer series: VLT Midi Drive FC 280, Operating temperature: 0...50°C, Current rating: 3A, Type of module: vector inverter, Number of analog inputs: 2, Number of analog outputs: 1, The programming method: keypad; PC, Max motor power: 1.1kW, Protection: anti-overload OPP; short circuit protection SCP, Output frequency: 0...500Hz, Voltage between phases (for three phase system): 3 x 380...480V AC, Inverter output voltage: 3 x 400V AC, Driver features: integrated brake transistor; integrated EMC filter, Current output: 0/4mA...20mA, Number of inputs: 11, Electrical connection: screw terminals, Body dimensions: 210x75x168mm, Anzahl je Verpackung: 1 Stücke.
