Produkte > SCHAFFNER > FN9222R-20-06

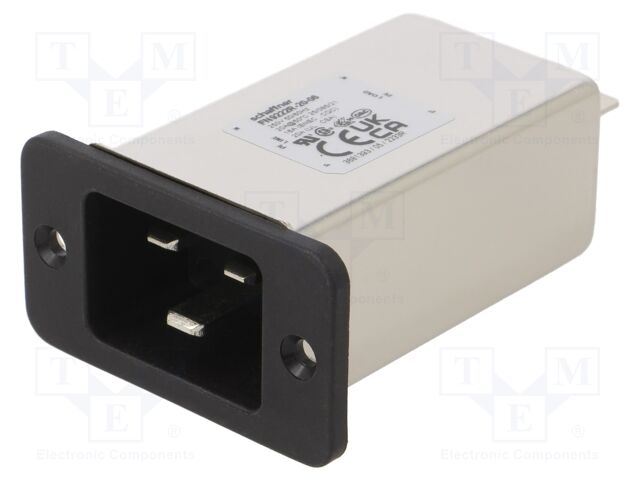

FN9222R-20-06

FN9222R-20-06 SCHAFFNER


Schaffner_datasheet_FN9222.pdf Hersteller: SCHAFFNER
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; 20A; 250VAC; C14 (E); -25÷85°C
Operating temperature: -25...85°C
Connector series: FN9222
Connector variant: C14 (E)
Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283
Inductance: 0.4mH
Capacitance Cx: 0.33µF
Capacitance Cy: 2.2nF
Mechanical mounting: for panel mounting; screw
Design: filter
Type of connector: AC supply
Connector: socket
Kind of connector: male
Rated voltage: 250V AC
Resistance: 1MΩ
Current rating: 20A
Leads: connectors 6,3x0,8mm
Leakage current: 0.31mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 812 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
4+19.22 EUR
5+ 14.73 EUR
300+ 14.16 EUR
Mindestbestellmenge: 4
Produktrezensionen
Produktbewertung abgeben

Technische Details FN9222R-20-06 SCHAFFNER

Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; 20A; 250VAC; C14 (E); -25÷85°C, Operating temperature: -25...85°C, Connector series: FN9222, Connector variant: C14 (E), Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283, Inductance: 0.4mH, Capacitance Cx: 0.33µF, Capacitance Cy: 2.2nF, Mechanical mounting: for panel mounting; screw, Design: filter, Type of connector: AC supply, Connector: socket, Kind of connector: male, Rated voltage: 250V AC, Resistance: 1MΩ, Current rating: 20A, Leads: connectors 6,3x0,8mm, Leakage current: 0.31mA, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote FN9222R-20-06 nach Preis ab 14.16 EUR bis 34.64 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
FN9222R-20-06 FN9222R-20-06 Hersteller : SCHAFFNER Schaffner_datasheet_FN9222.pdf Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; 20A; 250VAC; C14 (E); -25÷85°C
Operating temperature: -25...85°C
Connector series: FN9222
Connector variant: C14 (E)
Conform to the norm: CSA 22.2 No. 8 1986; IEC EN 60939; UL 1283
Inductance: 0.4mH
Capacitance Cx: 0.33µF
Capacitance Cy: 2.2nF
Mechanical mounting: for panel mounting; screw
Design: filter
Type of connector: AC supply
Connector: socket
Kind of connector: male
Rated voltage: 250V AC
Resistance: 1MΩ
Current rating: 20A
Leads: connectors 6,3x0,8mm
Leakage current: 0.31mA
auf Bestellung 812 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
4+19.22 EUR
5+ 14.73 EUR
300+ 14.16 EUR
Mindestbestellmenge: 4
FN9222R-20-06 FN9222R-20-06 Hersteller : Schaffner Schaffner_datasheet_FN9222-1949656.pdf AC Power Entry Modules COMPACT RESISTOR 20A
auf Bestellung 297 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+25.36 EUR
10+ 21.74 EUR
25+ 21.67 EUR
60+ 21.35 EUR
120+ 18.06 EUR
300+ 17.71 EUR
540+ 17.35 EUR
FN9222R-20-06 FN9222R-20-06 Hersteller : Schaffner EMC Inc. Schaffner_datasheet_FN9222.pdf Description: PWR ENT RCPT IEC320-C20 PANEL QC
Packaging: Tray
Features: Bleed Resistor, Front or Rear Side Mount
Filter Type: Filtered (EMI, RFI) - Commercial
Connector Type: Receptacle, Male Blades
Mounting Type: Panel Mount, Flange
Number of Positions: 3
Termination: Quick Connect - 0.250" (6.3mm)
Approval Agency: CQC, CSA, ENEC, UL
Ingress Protection: IP40
Panel Cutout Dimensions: Rectangular - 34.70mm x 27.00mm
Connector Style: IEC 320-C20
Material Flammability Rating: UL94 V-2
Accomodates a Fuse: No
Part Status: Active
Current Rating - Filter: 10A
auf Bestellung 146 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+34.64 EUR
10+ 26.68 EUR
25+ 24.15 EUR
40+ 22.97 EUR
80+ 21.37 EUR
FN9222R-20-06 FN9222R-20-06 Hersteller : SCHAFFNER - TE CONNECTIVITY 2340384.pdf Description: SCHAFFNER - TE CONNECTIVITY - FN9222R-20-06 - Gerätesteckverbindermodul mit Filter, IEC C20, Universell, 23 A, 250 VAC
tariffCode: 85363030
Schaltertyp: -
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Sicherungsgröße: -
Steckverbindermontage: Einrast-, Flanschmontage
IP-Schutzart: IP40
usEccn: EAR99
Anwendungen des Gerätestecker-Kombielements: Universell
Nennstrom: 23A
euEccn: NLR
Sicherungshalter: -
Steckverbindertyp: IEC C20
Produktpalette: FN 9222
productTraceability: No
Nennspannung: 250VAC
Steckverbinderanschlüsse: Steckanschluss
SVHC: No SVHC (14-Jun-2023)
auf Bestellung 105 Stücke:
Lieferzeit 14-21 Tag (e)
FN9222R-20-06 FN9222R-20-06 Hersteller : Schaffner fn9222.pdf Power Entry Module Filtered M 3 POS 250VAC 20A ST 1 Port
Produkt ist nicht verfügbar
