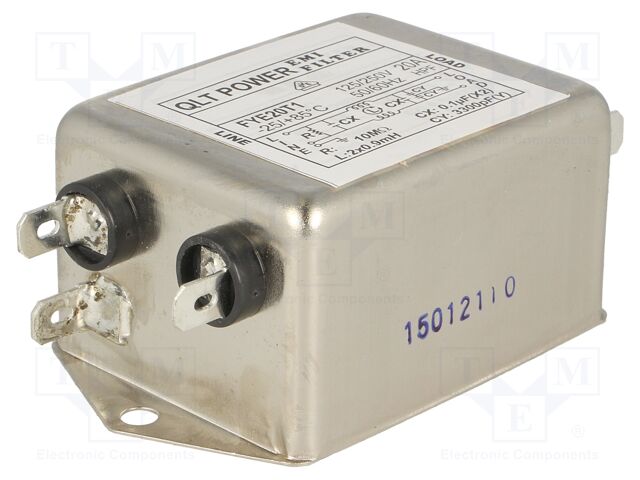

FYE20T1 QLT POWER
Hersteller: QLT POWER
Category: Suppression filters - others
Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 0.9mH; 10MΩ
Type of filter: anti-interference
Capacitance Cx: 0.1µF
Capacitance Cy: 3.3nF
Inductance of individual winding: 0.9mH
Resistance: 10MΩ
Max. operating current: 20A
Leads: connectors 6,3x0,8mm
Operating temperature: -25...85°C
Leakage current: 0.8mA
Panel cutout diameter: 5mm
Mounting holes pitch: 75mm
Min. insulation resistance: 0.1GΩ
AC test voltage: 1.8kV
Filter features: body dimensions with terminals
Body dimensions: 89x51.5x37mm
Operating voltage: 250V AC
Manufacturer series: FYE
Anzahl je Verpackung: 1 Stücke
Category: Suppression filters - others
Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 0.9mH; 10MΩ
Type of filter: anti-interference
Capacitance Cx: 0.1µF
Capacitance Cy: 3.3nF
Inductance of individual winding: 0.9mH
Resistance: 10MΩ
Max. operating current: 20A
Leads: connectors 6,3x0,8mm
Operating temperature: -25...85°C
Leakage current: 0.8mA
Panel cutout diameter: 5mm
Mounting holes pitch: 75mm
Min. insulation resistance: 0.1GΩ
AC test voltage: 1.8kV
Filter features: body dimensions with terminals
Body dimensions: 89x51.5x37mm
Operating voltage: 250V AC
Manufacturer series: FYE
Anzahl je Verpackung: 1 Stücke
auf Bestellung 302 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 4+ | 21.44 EUR |
| 5+ | 14.39 EUR |
| 6+ | 13.6 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FYE20T1 QLT POWER
Category: Suppression filters - others, Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 0.9mH; 10MΩ, Type of filter: anti-interference, Capacitance Cx: 0.1µF, Capacitance Cy: 3.3nF, Inductance of individual winding: 0.9mH, Resistance: 10MΩ, Max. operating current: 20A, Leads: connectors 6,3x0,8mm, Operating temperature: -25...85°C, Leakage current: 0.8mA, Panel cutout diameter: 5mm, Mounting holes pitch: 75mm, Min. insulation resistance: 0.1GΩ, AC test voltage: 1.8kV, Filter features: body dimensions with terminals, Body dimensions: 89x51.5x37mm, Operating voltage: 250V AC, Manufacturer series: FYE, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote FYE20T1 nach Preis ab 13.6 EUR bis 21.44 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FYE20T1 | Hersteller : QLT POWER |
Category: Suppression filters - others Description: Filter: anti-interference; 250VAC; Cx: 100nF; Cy: 3.3nF; 0.9mH; 10MΩ Type of filter: anti-interference Capacitance Cx: 0.1µF Capacitance Cy: 3.3nF Inductance of individual winding: 0.9mH Resistance: 10MΩ Max. operating current: 20A Leads: connectors 6,3x0,8mm Operating temperature: -25...85°C Leakage current: 0.8mA Panel cutout diameter: 5mm Mounting holes pitch: 75mm Min. insulation resistance: 0.1GΩ AC test voltage: 1.8kV Filter features: body dimensions with terminals Body dimensions: 89x51.5x37mm Operating voltage: 250V AC Manufacturer series: FYE |
auf Bestellung 302 Stücke: Lieferzeit 14-21 Tag (e) |
|
