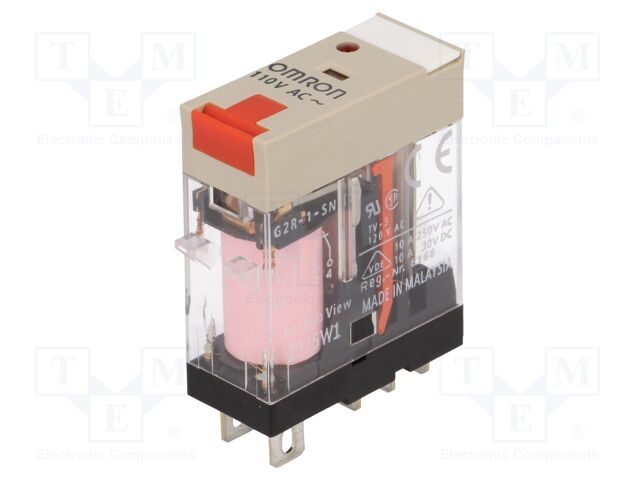

G2R-1-SNI 110VAC (S) OMRON
Hersteller: OMRON
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 110VAC; Icontacts max: 10A
Mounting: socket
Operating temperature: -40...70°C
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 30V DC
Type of relay: electromagnetic
Relay variant: industrial; miniature
Relay series: G2R-1-S
Rated coil voltage: 110V AC
Coil power consumption: 0.9VA
Operate time: 15ms
Release time: 10ms
Switched voltage: max. 125V DC; max. 380V AC
Contact current max.: 10A
Switching capacity: 300W; 2.5kVA
Contact resistance: 30mΩ
Coil current: 11mA
Related items: P2R-05A; P2R-05P; P2R-057P; P2RF-05; P2RF-05-E
Optional equipment: LED indicator; test button without blocking function
Design: test button
Terminal pitch: 5.2mm
Body dimensions: 29x13x35.5mm
Indication: LED
Coil resistance: 4.6kΩ
Contacts configuration: SPDT
Anzahl je Verpackung: 1 Stücke
