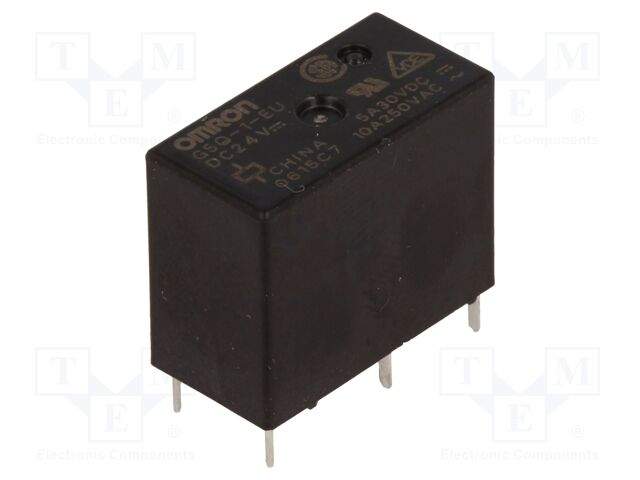

G5Q-1-EU 24VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 10A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 5A / 30V DC
Relay series: G5Q-EU
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Operate time: 10ms
Body dimensions: 20.3x10.3x15.8mm
Release time: 5ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Terminal pitch: 2.54mm
Coil current: 16.7mA
Enclosure description: standard seal
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 10A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 5A / 30V DC
Relay series: G5Q-EU
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Operate time: 10ms
Body dimensions: 20.3x10.3x15.8mm
Release time: 5ms
Coil power consumption: 400mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Terminal pitch: 2.54mm
Coil current: 16.7mA
Enclosure description: standard seal
Anzahl je Verpackung: 1 Stücke
auf Bestellung 92 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
35+ | 2.04 EUR |
39+ | 1.87 EUR |
53+ | 1.36 EUR |
56+ | 1.29 EUR |
500+ | 1.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5Q-1-EU 24VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 10A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 5A / 30V DC, Relay series: G5Q-EU, Switched voltage: max. 30V DC; max. 277V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.44kΩ, Operate time: 10ms, Body dimensions: 20.3x10.3x15.8mm, Release time: 5ms, Coil power consumption: 400mW, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Terminal pitch: 2.54mm, Coil current: 16.7mA, Enclosure description: standard seal, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G5Q-1-EU 24VDC nach Preis ab 1.29 EUR bis 2.04 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G5Q-1-EU 24VDC | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 24V DC Contact current max.: 10A AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 5A / 30V DC Relay series: G5Q-EU Switched voltage: max. 30V DC; max. 277V AC Relay variant: miniature Mounting: PCB Coil resistance: 1.44kΩ Operate time: 10ms Body dimensions: 20.3x10.3x15.8mm Release time: 5ms Coil power consumption: 400mW Operating temperature: -40...85°C Contact resistance: 100mΩ Terminal pitch: 2.54mm Coil current: 16.7mA Enclosure description: standard seal |
auf Bestellung 92 Stücke: Lieferzeit 14-21 Tag (e) |
|
