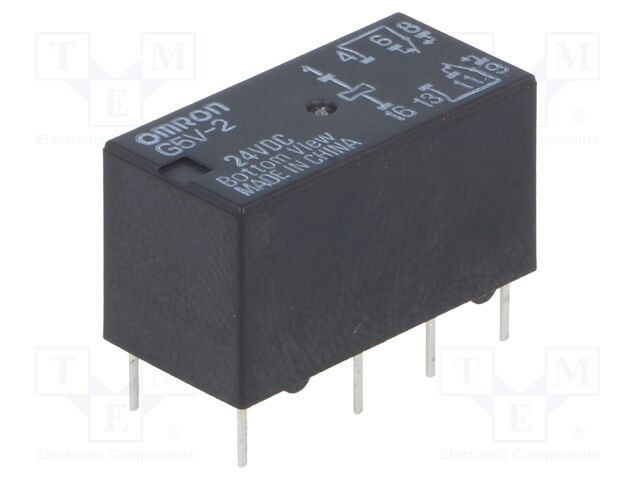

G5V-2 24VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Relay series: G5V-2
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1152Ω
Operate time: 7ms
Body dimensions: 20.5x10.1x11.5mm
Release time: 3ms
Coil power consumption: 0.5W
Operating temperature: -25...70°C
Contact resistance: 50mΩ
Terminal pitch: 5mm
Coil current: 20.8mA
Contact plating: gold-plated
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Relay series: G5V-2
Switched voltage: max. 125V AC; max. 125V DC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1152Ω
Operate time: 7ms
Body dimensions: 20.5x10.1x11.5mm
Release time: 3ms
Coil power consumption: 0.5W
Operating temperature: -25...70°C
Contact resistance: 50mΩ
Terminal pitch: 5mm
Coil current: 20.8mA
Contact plating: gold-plated
auf Bestellung 1087 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
23+ | 3.23 EUR |
25+ | 2.93 EUR |
34+ | 2.12 EUR |
36+ | 2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G5V-2 24VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 24V DC, Contact current max.: 2A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Relay series: G5V-2, Switched voltage: max. 125V AC; max. 125V DC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1152Ω, Operate time: 7ms, Body dimensions: 20.5x10.1x11.5mm, Release time: 3ms, Coil power consumption: 0.5W, Operating temperature: -25...70°C, Contact resistance: 50mΩ, Terminal pitch: 5mm, Coil current: 20.8mA, Contact plating: gold-plated, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote G5V-2 24VDC nach Preis ab 2 EUR bis 4.18 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G5V-2 24VDC | Hersteller : OMRON Electronic Components |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 2A; PCB Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 24V DC Contact current max.: 2A AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 2A / 30V DC Relay series: G5V-2 Switched voltage: max. 125V AC; max. 125V DC Relay variant: miniature Mounting: PCB Coil resistance: 1152Ω Operate time: 7ms Body dimensions: 20.5x10.1x11.5mm Release time: 3ms Coil power consumption: 0.5W Operating temperature: -25...70°C Contact resistance: 50mΩ Terminal pitch: 5mm Coil current: 20.8mA Contact plating: gold-plated Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1087 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
G5V-2-24VDC | Hersteller : OMRON |
24V; 2A; 500mW; DPDT; 20,5 x 10,1 x 11,5mm PCB G5V2 24VDC subminiature relay P G5V2-24 Anzahl je Verpackung: 25 Stücke |
auf Bestellung 100 Stücke: Lieferzeit 7-14 Tag (e) |
|
