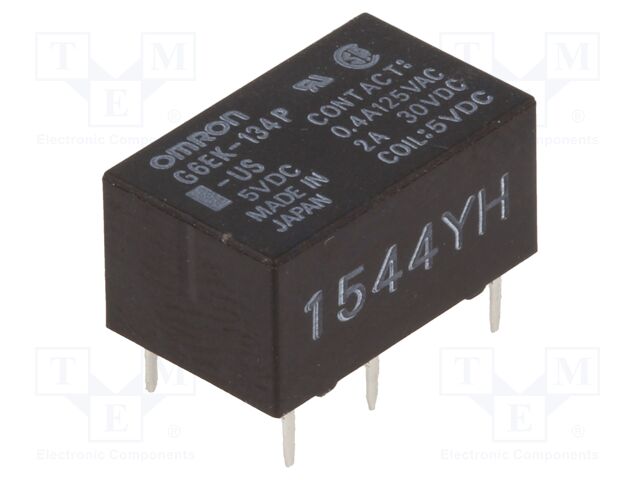

G6EK-134P-US 5VDC OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 3A; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 5V DC
Contact current max.: 3A
AC contacts rating @R: 0.4A / 125V AC
DC contacts rating @R: 2A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: bistable; miniature
Mounting: PCB
Coil resistance: 125Ω
Operate time: 5ms
Body dimensions: 16x10x8mm
Release time: 5ms
Coil power consumption: 200mW
Operating temperature: -40...70°C
Relay series: G6E
Contact resistance: 50mΩ
Terminal pitch: 5.08mm
Coil current: 40mA
Design: two coils
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G6EK-134P-US 5VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; Icontacts max: 3A; PCB, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 5V DC, Contact current max.: 3A, AC contacts rating @R: 0.4A / 125V AC, DC contacts rating @R: 2A / 30V DC, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: bistable; miniature, Mounting: PCB, Coil resistance: 125Ω, Operate time: 5ms, Body dimensions: 16x10x8mm, Release time: 5ms, Coil power consumption: 200mW, Operating temperature: -40...70°C, Relay series: G6E, Contact resistance: 50mΩ, Terminal pitch: 5.08mm, Coil current: 40mA, Design: two coils, Anzahl je Verpackung: 1 Stücke.
