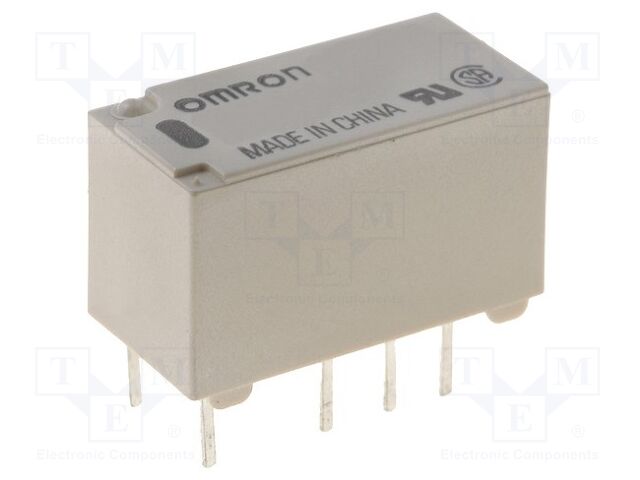

G6S-2-Y 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 12V DC
Contact current max.: 2A
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 720Ω
Operate time: 4ms
Body dimensions: 14.8x7.3x9.2mm
Release time: 4ms
Coil power consumption: 140mW
Operating temperature: -40...85°C
Relay series: G6S
Contact resistance: 75mΩ
Terminal pitch: 2.54mm
Coil current: 16.7mA
Anzahl je Verpackung: 1000 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details G6S-2-Y 12VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 12V DC, Contact current max.: 2A, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: subminiature, Mounting: PCB, Coil resistance: 720Ω, Operate time: 4ms, Body dimensions: 14.8x7.3x9.2mm, Release time: 4ms, Coil power consumption: 140mW, Operating temperature: -40...85°C, Relay series: G6S, Contact resistance: 75mΩ, Terminal pitch: 2.54mm, Coil current: 16.7mA, Anzahl je Verpackung: 1000 Stücke.
