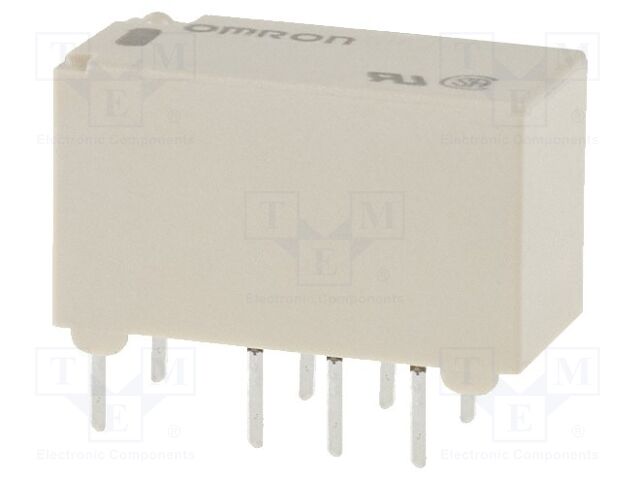

G6SU-2 12VDC OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; G6S
Mounting: PCB
Coil resistance: 1.44kΩ
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Relay series: G6S
Rated coil voltage: 12V DC
Coil power consumption: 100mW
Operate time: 4ms
Release time: 4ms
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 2A
Contact resistance: 75mΩ
Coil current: 8.3mA
Design: single coil
Terminal pitch: 2.54mm
Operating temperature: -40...85°C
Body dimensions: 14.8x7.3x9.2mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 2A; G6S
Mounting: PCB
Coil resistance: 1.44kΩ
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Type of relay: electromagnetic
Relay variant: bistable; subminiature
Relay series: G6S
Rated coil voltage: 12V DC
Coil power consumption: 100mW
Operate time: 4ms
Release time: 4ms
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 2A
Contact resistance: 75mΩ
Coil current: 8.3mA
Design: single coil
Terminal pitch: 2.54mm
Operating temperature: -40...85°C
Body dimensions: 14.8x7.3x9.2mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 29 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
9+ | 8.22 EUR |
14+ | 5.39 EUR |
15+ | 5.09 EUR |
500+ | 5.08 EUR |
