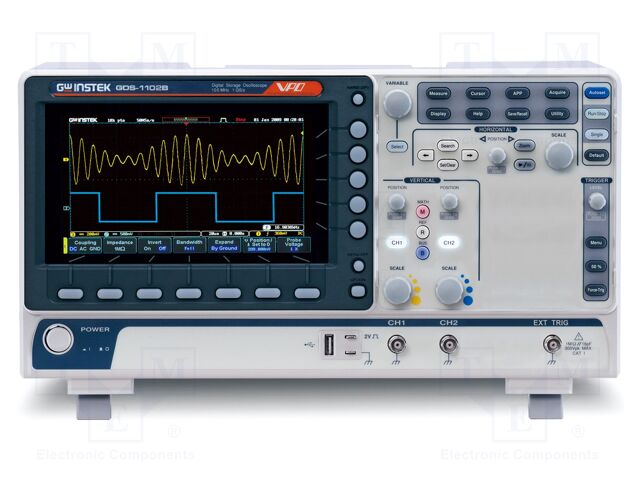

GDS-1102B (CE) 2CH GW INSTEK
Hersteller: GW INSTEK
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; colour,LCD 7"
Manufacturer series: GDS-1000B
Interface: USB
Display resolution: 800x480
Dimensions: 384x208x127.3mm
Input impedance: 1MΩ/16pF
Standard equipment: mains cable; oscilloscope probe (1 per channel)
Measuring instrument features: automatic measurement of many parameters; background noise filter; measurements by means of cursors; protocols analyse: I2C, SPI, RS232/UART, CAN, LIN; X-Y operation mode
Sampling: 1Gsps
Type of oscilloscope: digital
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Trigger modes: automatic; normal; single
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 300V
Plug variant: EU
Band: 100MHz
Rise time: ≤3.5ns
Input sensitivity: 1mV/div...10V/div
Time base: 5n...100s/div
Memory record length: 10Mpts
Kind of display used: colour; LCD 7"
Number of channels: 2
Anzahl je Verpackung: 1 Stücke
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; colour,LCD 7"
Manufacturer series: GDS-1000B
Interface: USB
Display resolution: 800x480
Dimensions: 384x208x127.3mm
Input impedance: 1MΩ/16pF
Standard equipment: mains cable; oscilloscope probe (1 per channel)
Measuring instrument features: automatic measurement of many parameters; background noise filter; measurements by means of cursors; protocols analyse: I2C, SPI, RS232/UART, CAN, LIN; X-Y operation mode
Sampling: 1Gsps
Type of oscilloscope: digital
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Trigger modes: automatic; normal; single
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 300V
Plug variant: EU
Band: 100MHz
Rise time: ≤3.5ns
Input sensitivity: 1mV/div...10V/div
Time base: 5n...100s/div
Memory record length: 10Mpts
Kind of display used: colour; LCD 7"
Number of channels: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 586.89 EUR |
