Produkte > H-OLD > GL.96 19MM

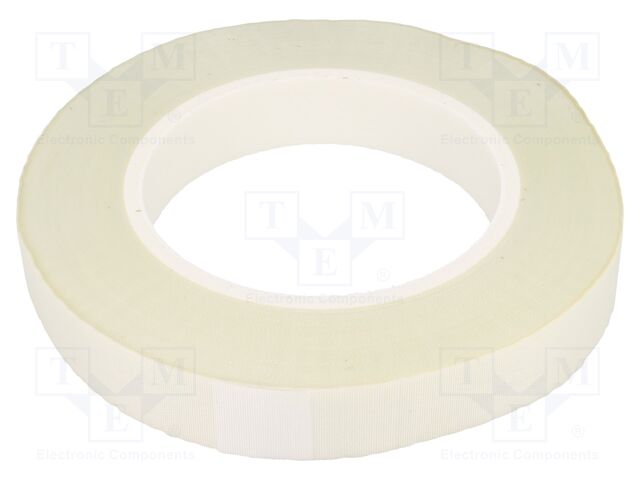

GL.96 19MM

GL.96 19MM H-OLD


pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAFEBFE4A436800C7&compId=GL.96.pdf?ci_sign=7f734d040ac7234c37a84684fe8b6dc620daab56 Hersteller: H-OLD
Category: Insulating tapes
Description: Tape: electrical insulating; W: 19mm; L: 50m; Thk: 0.17mm; white
Type of tape: electrical insulating
Width: 19mm
Length: 50m
Thickness: 0.17mm
Colour: white
Kind of adhesive: silicone
Tape material: glass cloth
Operating temperature: 180°C
Elongation at rupture: 5%
Adhesion to steel: 2.3N/cm
Tape features: enables labelling; high mechanical strength
Resistance to: temperature
Tensile strength: 300N/cm
Dielectric strength: 2.5kV
Flammability rating: UL510
Tape application: coils; motor windings; transformers
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GL.96 19MM H-OLD

Category: Insulating tapes, Description: Tape: electrical insulating; W: 19mm; L: 50m; Thk: 0.17mm; white, Type of tape: electrical insulating, Width: 19mm, Length: 50m, Thickness: 0.17mm, Colour: white, Kind of adhesive: silicone, Tape material: glass cloth, Operating temperature: 180°C, Elongation at rupture: 5%, Adhesion to steel: 2.3N/cm, Tape features: enables labelling; high mechanical strength, Resistance to: temperature, Tensile strength: 300N/cm, Dielectric strength: 2.5kV, Flammability rating: UL510, Tape application: coils; motor windings; transformers, Anzahl je Verpackung: 1 Stücke.
