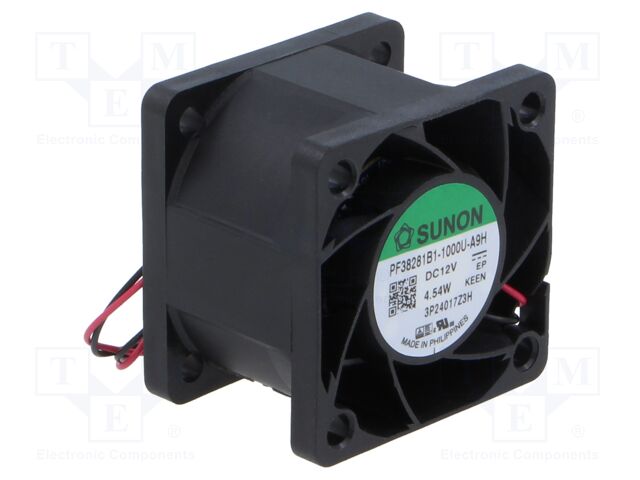

PF38281B1-1000U-A9H SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 38x38x28mm; 30.75m3/h; 57.4dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6.5...13.2V
Fan dimensions: 38x38x28mm
Power consumption: 4.54W
Current rating: 378mA
Fan efficiency: 30.75m3/h
Noise level: 57.4dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 16000 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 1.5m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 39.12mm H2O
Wire size: 28AWG
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 38x38x28mm; 30.75m3/h; 57.4dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6.5...13.2V
Fan dimensions: 38x38x28mm
Power consumption: 4.54W
Current rating: 378mA
Fan efficiency: 30.75m3/h
Noise level: 57.4dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 16000 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 1.5m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 39.12mm H2O
Wire size: 28AWG
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details PF38281B1-1000U-A9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 38x38x28mm; 30.75m3/h; 57.4dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6.5...13.2V, Fan dimensions: 38x38x28mm, Power consumption: 4.54W, Current rating: 378mA, Fan efficiency: 30.75m3/h, Noise level: 57.4dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 16000 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 1.5m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 39.12mm H2O, Wire size: 28AWG, Anzahl je Verpackung: 1 Stücke.
