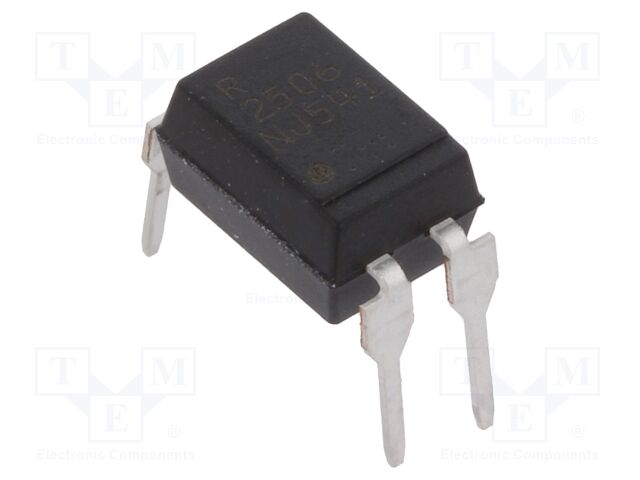

PS2506-1-A Renesas Electronics Corporation
Hersteller: Renesas Electronics Corporation
Description: OPTOISOLATOR 5KV DARL 4DIP
Packaging: Tube
Package / Case: 4-DIP (0.300", 7.62mm)
Output Type: Darlington
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 100°C
Voltage - Forward (Vf) (Typ): 1.17V
Input Type: AC, DC
Current - Output / Channel: 200mA
Voltage - Isolation: 5000Vrms
Current Transfer Ratio (Min): 200% @ 1mA
Vce Saturation (Max): 1V
Supplier Device Package: 4-DIP
Voltage - Output (Max): 40V
Rise / Fall Time (Typ): 100µs, 100µs
Part Status: Preliminary
Number of Channels: 1
Current - DC Forward (If) (Max): 80 mA
Description: OPTOISOLATOR 5KV DARL 4DIP
Packaging: Tube
Package / Case: 4-DIP (0.300", 7.62mm)
Output Type: Darlington
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 100°C
Voltage - Forward (Vf) (Typ): 1.17V
Input Type: AC, DC
Current - Output / Channel: 200mA
Voltage - Isolation: 5000Vrms
Current Transfer Ratio (Min): 200% @ 1mA
Vce Saturation (Max): 1V
Supplier Device Package: 4-DIP
Voltage - Output (Max): 40V
Rise / Fall Time (Typ): 100µs, 100µs
Part Status: Preliminary
Number of Channels: 1
Current - DC Forward (If) (Max): 80 mA
auf Bestellung 1969 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
10+ | 2.86 EUR |
11+ | 2.55 EUR |
25+ | 2.42 EUR |
100+ | 1.99 EUR |
250+ | 1.86 EUR |
500+ | 1.64 EUR |
1000+ | 1.3 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PS2506-1-A Renesas Electronics Corporation
Description: OPTOISOLATOR 5KV DARL 4DIP, Packaging: Tube, Package / Case: 4-DIP (0.300", 7.62mm), Output Type: Darlington, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 100°C, Voltage - Forward (Vf) (Typ): 1.17V, Input Type: AC, DC, Current - Output / Channel: 200mA, Voltage - Isolation: 5000Vrms, Current Transfer Ratio (Min): 200% @ 1mA, Vce Saturation (Max): 1V, Supplier Device Package: 4-DIP, Voltage - Output (Max): 40V, Rise / Fall Time (Typ): 100µs, 100µs, Part Status: Preliminary, Number of Channels: 1, Current - DC Forward (If) (Max): 80 mA.
Weitere Produktangebote PS2506-1-A nach Preis ab 0.86 EUR bis 23.84 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PS2506-1-A | Hersteller : Renesas Electronics | Transistor Output Optocouplers Optocoupler 4-pin DIP |
auf Bestellung 38195 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||
PS2506-1-A | Hersteller : CEL (Renesas) |
Category: Optocouplers - analog output Description: Optocoupler; THT; Ch: 1; OUT: Darlington; Uinsul: 5kV; Uce: 40V; DIP4 Type of optocoupler: optocoupler Mounting: THT Number of channels: 1 Kind of output: Darlington Insulation voltage: 5kV CTR@If: 200-2000%@1mA Collector-emitter voltage: 40V Case: DIP4 Manufacturer series: NEPOC Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||
PS2506-1-A | Hersteller : CEL (Renesas) |
Category: Optocouplers - analog output Description: Optocoupler; THT; Ch: 1; OUT: Darlington; Uinsul: 5kV; Uce: 40V; DIP4 Type of optocoupler: optocoupler Mounting: THT Number of channels: 1 Kind of output: Darlington Insulation voltage: 5kV CTR@If: 200-2000%@1mA Collector-emitter voltage: 40V Case: DIP4 Manufacturer series: NEPOC |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
PS2506-1-A | Hersteller : RENESAS |
Description: RENESAS - PS2506-1-A - Optokoppler, 1 Kanal, DIP, 4 Pin(s), 80 mA, 5 kV, 200 % Anzahl der Kanäle: 1 Kanal Anzahl der Pins: 4 CTR, min.: 200 Isolationsspannung: 5 Durchlassstrom If, max.: 80 Bauform - Optokoppler: DIP Kollektor-Emitter-Spannung V(br)ceo: 40 Produktpalette: NEPOC SVHC: No SVHC (19-Jan-2021) |
auf Bestellung 1600 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
PS2506-1-A | Hersteller : Renesas | Optocoupler AC-IN 1-CH Darlington DC-OUT 4-Pin PDIP Magazine |
auf Bestellung 88 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
PS2506-1-A | Hersteller : Renesas |
PDIP 4/SINGLE TR, AC, COUPLER, ROHS COMPLIANT OPTOCOUPLER Anzahl je Verpackung: 100 Stücke |
auf Bestellung 3 Stücke: Lieferzeit 7-21 Tag (e) |
