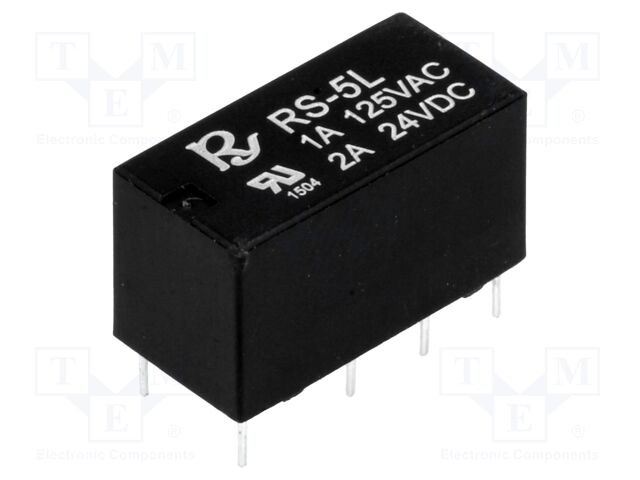

RS-5-L Recoy/RAYEX ELECTRONICS
Hersteller: Recoy/RAYEX ELECTRONICS
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 1A / 120V AC
DC contacts rating @R: 1.25A / 30V DC
Switched voltage: max. 30V DC; max. 120V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 125Ω
Operate time: 6ms
Body dimensions: 20.2x9.8x11.5mm
Release time: 3ms
Coil power consumption: 200mW
Operating temperature: -30...70°C
Relay series: RS
Contact resistance: 100mΩ
Contact material: AgCdO
Terminal pitch: 5.08mm
Coil current: 40mA
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 2A
AC contacts rating @R: 1A / 120V AC
DC contacts rating @R: 1.25A / 30V DC
Switched voltage: max. 30V DC; max. 120V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 125Ω
Operate time: 6ms
Body dimensions: 20.2x9.8x11.5mm
Release time: 3ms
Coil power consumption: 200mW
Operating temperature: -30...70°C
Relay series: RS
Contact resistance: 100mΩ
Contact material: AgCdO
Terminal pitch: 5.08mm
Coil current: 40mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 79 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
47+ | 1.53 EUR |
54+ | 1.33 EUR |
79+ | 0.9 EUR |
1000+ | 0.82 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RS-5-L Recoy/RAYEX ELECTRONICS
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 2A, AC contacts rating @R: 1A / 120V AC, DC contacts rating @R: 1.25A / 30V DC, Switched voltage: max. 30V DC; max. 120V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 125Ω, Operate time: 6ms, Body dimensions: 20.2x9.8x11.5mm, Release time: 3ms, Coil power consumption: 200mW, Operating temperature: -30...70°C, Relay series: RS, Contact resistance: 100mΩ, Contact material: AgCdO, Terminal pitch: 5.08mm, Coil current: 40mA, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote RS-5-L nach Preis ab 0.9 EUR bis 1.53 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RS-5-L | Hersteller : Recoy/RAYEX ELECTRONICS |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 2A; PCB Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 5V DC Contact current max.: 2A AC contacts rating @R: 1A / 120V AC DC contacts rating @R: 1.25A / 30V DC Switched voltage: max. 30V DC; max. 120V AC Relay variant: miniature Mounting: PCB Coil resistance: 125Ω Operate time: 6ms Body dimensions: 20.2x9.8x11.5mm Release time: 3ms Coil power consumption: 200mW Operating temperature: -30...70°C Relay series: RS Contact resistance: 100mΩ Contact material: AgCdO Terminal pitch: 5.08mm Coil current: 40mA |
auf Bestellung 79 Stücke: Lieferzeit 14-21 Tag (e) |
|
