Produkte > VISHAY / SILICONIX > SIHP24N80AE-GE3
SIHP24N80AE-GE3

SIHP24N80AE-GE3 Vishay / Siliconix


sihp24n80ae.pdf Hersteller: Vishay / Siliconix
MOSFET N-CHANNEL 800V TO-220AB
auf Bestellung 7268 Stücke:

Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
9+6.06 EUR
10+ 5.41 EUR
25+ 5.36 EUR
100+ 4.65 EUR
250+ 4.63 EUR
500+ 4.32 EUR
1000+ 4.06 EUR
Mindestbestellmenge: 9
Produktrezensionen
Produktbewertung abgeben

Technische Details SIHP24N80AE-GE3 Vishay / Siliconix

Description: MOSFET N-CH 800V 21A TO220AB, Packaging: Tube, Package / Case: TO-220-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 21A (Tc), Rds On (Max) @ Id, Vgs: 184mOhm @ 10A, 10V, Power Dissipation (Max): 208W (Tc), Vgs(th) (Max) @ Id: 4V @ 250µA, Supplier Device Package: TO-220AB, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 10V, Vgs (Max): ±30V, Drain to Source Voltage (Vdss): 800 V, Gate Charge (Qg) (Max) @ Vgs: 89 nC @ 10 V, Input Capacitance (Ciss) (Max) @ Vds: 1836 pF @ 100 V.

Weitere Produktangebote SIHP24N80AE-GE3 nach Preis ab 2.89 EUR bis 7.7 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
SIHP24N80AE-GE3 SIHP24N80AE-GE3 Hersteller : Vishay Siliconix sihp24n80ae.pdf Description: MOSFET N-CH 800V 21A TO220AB
Packaging: Tube
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 21A (Tc)
Rds On (Max) @ Id, Vgs: 184mOhm @ 10A, 10V
Power Dissipation (Max): 208W (Tc)
Vgs(th) (Max) @ Id: 4V @ 250µA
Supplier Device Package: TO-220AB
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 800 V
Gate Charge (Qg) (Max) @ Vgs: 89 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1836 pF @ 100 V
auf Bestellung 1777 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
4+7.7 EUR
10+ 6.48 EUR
100+ 5.24 EUR
500+ 4.66 EUR
1000+ 3.99 EUR
Mindestbestellmenge: 4
SIHP24N80AE-GE3 SIHP24N80AE-GE3 Hersteller : VISHAY VISH-S-A0010453075-1.pdf?hkey=6D3A4C79FDBF58556ACFDE234799DDF0 Description: VISHAY - SIHP24N80AE-GE3 - Leistungs-MOSFET, n-Kanal, 800 V, 21 A, 0.16 ohm, TO-220AB, Durchsteckmontage
tariffCode: 85412900
Drain-Source-Spannung Vds: 800V
rohsCompliant: YES
Dauer-Drainstrom Id: 21A
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
Gate-Source-Schwellenspannung, max.: 4V
euEccn: NLR
Verlustleistung: 208W
Anzahl der Pins: 3Pin(s)
productTraceability: Yes-Date/Lot Code
Rds(on)-Prüfspannung: 10V
Betriebstemperatur, max.: 150°C
Drain-Source-Durchgangswiderstand: 0.16ohm
auf Bestellung 1739 Stücke:
Lieferzeit 14-21 Tag (e)

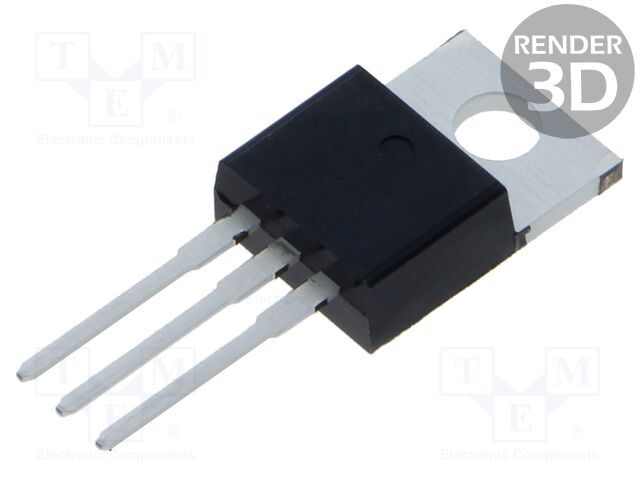

SIHP24N80AE-GE3 Hersteller : VISHAY sihp24n80ae.pdf Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 800V; 13A; Idm: 51A; 208W; TO220AB
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 800V
Drain current: 13A
Pulsed drain current: 51A
Power dissipation: 208W
Case: TO220AB
Gate-source voltage: ±30V
On-state resistance: 184mΩ
Mounting: THT
Gate charge: 89nC
Kind of package: tube
Kind of channel: enhanced
Anzahl je Verpackung: 1 Stücke
auf Bestellung 998 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
18+4.19 EUR
20+ 3.7 EUR
23+ 3.15 EUR
25+ 2.97 EUR
500+ 2.89 EUR
Mindestbestellmenge: 18
SIHP24N80AE-GE3 Hersteller : VISHAY sihp24n80ae.pdf Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 800V; 13A; Idm: 51A; 208W; TO220AB
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 800V
Drain current: 13A
Pulsed drain current: 51A
Power dissipation: 208W
Case: TO220AB
Gate-source voltage: ±30V
On-state resistance: 184mΩ
Mounting: THT
Gate charge: 89nC
Kind of package: tube
Kind of channel: enhanced
auf Bestellung 998 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
18+4.19 EUR
20+ 3.7 EUR
23+ 3.15 EUR
25+ 2.97 EUR
500+ 2.89 EUR
Mindestbestellmenge: 18
SIHP24N80AE-GE3 Hersteller : Vishay sihp24n80ae.pdf Power MOSFET
Produkt ist nicht verfügbar
