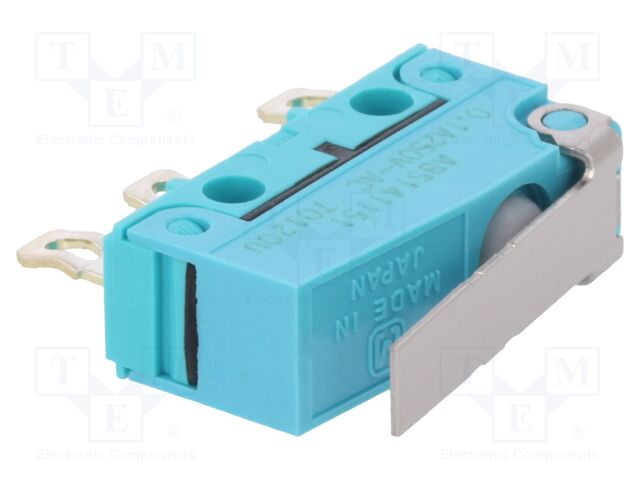

ABS141151 PANASONIC
Hersteller: PANASONICCategory: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 0.1A/250VAC; 0.1A/30VDC; with lever
Mechanical durability: 5000000 cycles
Leads: for soldering
IP rating: IP67
Type of switch: microswitch SNAP ACTION
Switching method: ON-(ON)
Contacts configuration: SPDT
Switches features: with lever
Operating temperature: -40...85°C
Body dimensions: 19.8x6.4x10.1mm
Max. contact resistance:: 100mΩ
DC contacts rating @R: 0.1A / 30V DC
AC contacts rating @R: 0.1A / 250V AC
Operating Force: 0.59N
Stable positions number: 1
Number of positions: 2
Electrical life: 200000 cycles
Min. insulation resistance: 0.1GΩ
Manufacturer series: ABS
Contact material: CuNi + AgNi + Au
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 71.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details ABS141151 PANASONIC
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 0.1A/250VAC; 0.1A/30VDC; with lever, Mechanical durability: 5000000 cycles, Leads: for soldering, IP rating: IP67, Type of switch: microswitch SNAP ACTION, Switching method: ON-(ON), Contacts configuration: SPDT, Switches features: with lever, Operating temperature: -40...85°C, Body dimensions: 19.8x6.4x10.1mm, Max. contact resistance:: 100mΩ, DC contacts rating @R: 0.1A / 30V DC, AC contacts rating @R: 0.1A / 250V AC, Operating Force: 0.59N, Stable positions number: 1, Number of positions: 2, Electrical life: 200000 cycles, Min. insulation resistance: 0.1GΩ, Manufacturer series: ABS, Contact material: CuNi + AgNi + Au.
