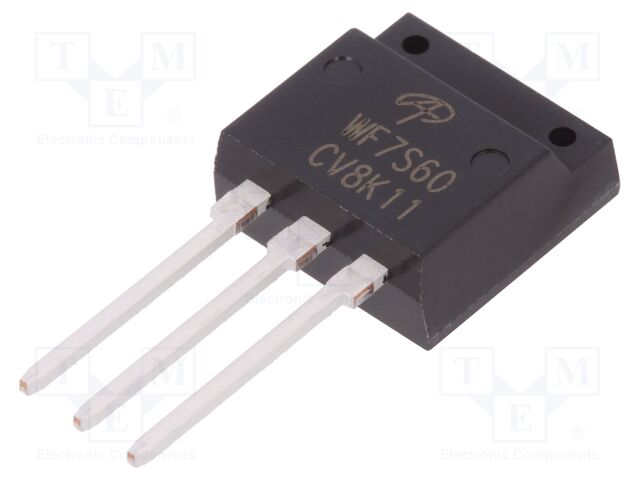

AOWF7S60 ALPHA & OMEGA SEMICONDUCTOR
Hersteller: ALPHA & OMEGA SEMICONDUCTOR
Category: THT N channel transistors
Description: Transistor: N-MOSFET; unipolar; 600V; 5A; TO262F
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 600V
Drain current: 5A
Case: TO262F
Gate-source voltage: ±30V
On-state resistance: 0.6Ω
Mounting: THT
Gate charge: 8.2nC
Kind of channel: enhancement
| Anzahl | Privatkunde |
|---|---|
| 103+ | 0.83 EUR |
| 111+ | 0.77 EUR |
| 120+ | 0.71 EUR |
| 131+ | 0.65 EUR |
| 500+ | 0.49 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details AOWF7S60 ALPHA & OMEGA SEMICONDUCTOR
Description: MOSFET N-CH 600V 7A TO262F, Input Capacitance (Ciss) (Max) @ Vds: 372 pF @ 100 V, Gate Charge (Qg) (Max) @ Vgs: 8.2 nC @ 10 V, Drain to Source Voltage (Vdss): 600 V, Vgs (Max): ±30V, Drive Voltage (Max Rds On, Min Rds On): 10V, Part Status: Not For New Designs, Supplier Device Package: TO-262F, Vgs(th) (Max) @ Id: 3.9V @ 250µA, Power Dissipation (Max): 25W (Tc), Rds On (Max) @ Id, Vgs: 600mOhm @ 3.5A, 10V, Current - Continuous Drain (Id) @ 25°C: 7A (Tc), FET Type: N-Channel, Technology: MOSFET (Metal Oxide), Operating Temperature: -55°C ~ 150°C (TJ), Mounting Type: Through Hole, Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA, Packaging: Tube.
Weitere Produktangebote AOWF7S60
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
AOWF7S60 | Alpha & Omega Semiconductor Inc. |
Description: MOSFET N-CH 600V 7A TO262F Input Capacitance (Ciss) (Max) @ Vds: 372 pF @ 100 V Gate Charge (Qg) (Max) @ Vgs: 8.2 nC @ 10 V Drain to Source Voltage (Vdss): 600 V Vgs (Max): ±30V Drive Voltage (Max Rds On, Min Rds On): 10V Part Status: Not For New Designs Supplier Device Package: TO-262F Vgs(th) (Max) @ Id: 3.9V @ 250µA Power Dissipation (Max): 25W (Tc) Rds On (Max) @ Id, Vgs: 600mOhm @ 3.5A, 10V Current - Continuous Drain (Id) @ 25°C: 7A (Tc) FET Type: N-Channel Technology: MOSFET (Metal Oxide) Operating Temperature: -55°C ~ 150°C (TJ) Mounting Type: Through Hole Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA Packaging: Tube |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 1000 Stücke Im Einkaufswagen Stück im Wert von UAH |
| AOWF7S60 |
|
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 600V 7A TO262F
Input Capacitance (Ciss) (Max) @ Vds: 372 pF @ 100 V
Gate Charge (Qg) (Max) @ Vgs: 8.2 nC @ 10 V
Drain to Source Voltage (Vdss): 600 V
Vgs (Max): ±30V
Drive Voltage (Max Rds On, Min Rds On): 10V
Part Status: Not For New Designs
Supplier Device Package: TO-262F
Vgs(th) (Max) @ Id: 3.9V @ 250µA
Power Dissipation (Max): 25W (Tc)
Rds On (Max) @ Id, Vgs: 600mOhm @ 3.5A, 10V
Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
Packaging: Tube
