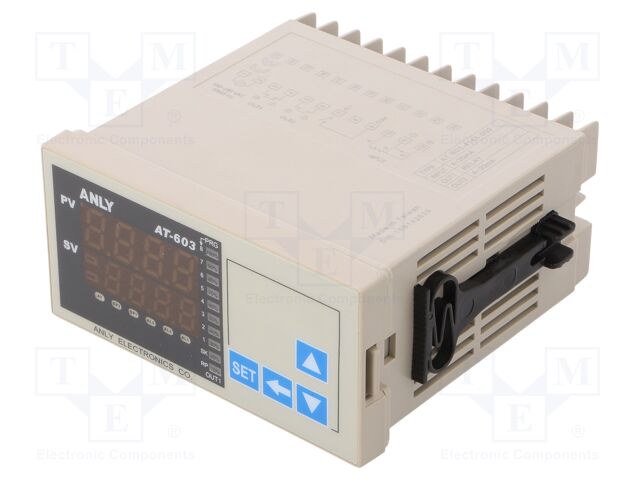

AT603-414-1000 ANLY ELECTRONICS

Category: Temperature Regulators, Description: Module: regulator; temperature; SPST-NO; OUT 2: 4÷20mA; on panel, Operating temperature: -10...50°C, Kind of display used: LED x2, Kind of input 1: 4...20mA, Kind of output 1: SPST-NO, Kind of output 2: 4...20mA, Kind of output 3: SPST-NO, Display height 1: 10mm, Display 2 height: 7mm, IP rating: IP20, Input 1 properties: current analog, Supply voltage: 90...260V AC, Mounting hole diameter: 91x46mm, Body dimensions: 96x48x83mm, Type of module: regulator, Controlled parameter: temperature, Controlled parameter range: -1999...9999, The programming method: foil keypad, Regulation for output 1: AUTOTUNING; DEAD BAND; ON-OFF; P; PI; PID, Additional functions: heating or cooling control; led bar; LED status indicator; non-volatile EEPROM memory; scroll menu, Manufacturer series: AT603, Output 3 electrical parameters: 240V AC / 3A, Output 1 electrical parameters: 240V AC / 3A, Display parameters: 4-digit, Mounting: on panel, Anzahl je Verpackung: 1 Stücke.
