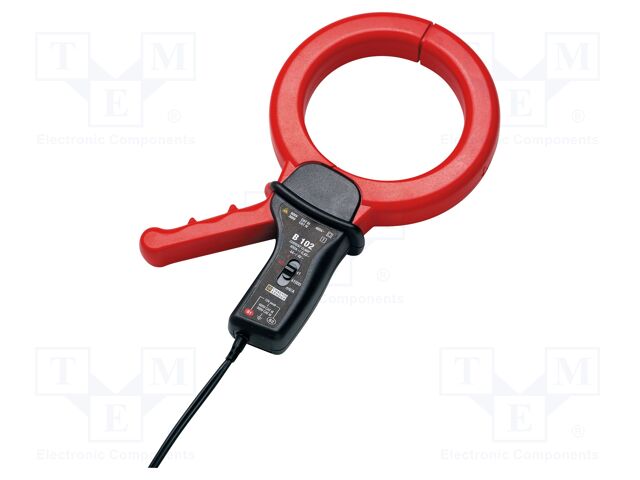

B102 CV CLAMP LEAKAGE CT. JAW : 112 MM CHAUVIN ARNOUX
Hersteller: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 112mm; Len: 1.5m; IP40
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Dimensions: 285x175x43mm
Cable length: 1.5m
Type of test accessories: AC current clamp adapter
Max. diameter of measured cable: 112mm
Output signal: 1mV/1A; 1mV/1mA
Measurement: AC current
AC current measuring range: 500µA...4A; 500mA...400A
Battery/ rechargeable battery: none
Kind of connector: 2x banana plug 4mm
IP rating: IP40
Anzahl je Verpackung: 1 Stücke
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 112mm; Len: 1.5m; IP40
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Dimensions: 285x175x43mm
Cable length: 1.5m
Type of test accessories: AC current clamp adapter
Max. diameter of measured cable: 112mm
Output signal: 1mV/1A; 1mV/1mA
Measurement: AC current
AC current measuring range: 500µA...4A; 500mA...400A
Battery/ rechargeable battery: none
Kind of connector: 2x banana plug 4mm
IP rating: IP40
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details B102 CV CLAMP LEAKAGE CT. JAW : 112 MM CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes, Description: AC current clamp adapter; Øcable: 112mm; Len: 1.5m; IP40, Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010, Dimensions: 285x175x43mm, Cable length: 1.5m, Type of test accessories: AC current clamp adapter, Max. diameter of measured cable: 112mm, Output signal: 1mV/1A; 1mV/1mA, Measurement: AC current, AC current measuring range: 500µA...4A; 500mA...400A, Battery/ rechargeable battery: none, Kind of connector: 2x banana plug 4mm, IP rating: IP40, Anzahl je Verpackung: 1 Stücke.
