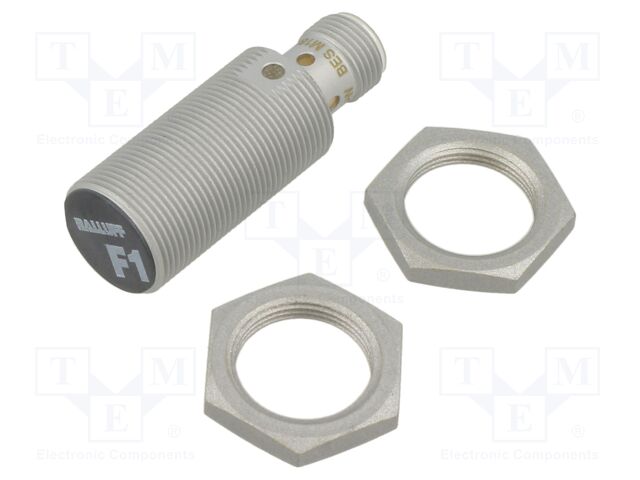

BES M18MF1-PSC50A-S04G-W BALLUFF
Hersteller: BALLUFF
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO; 0÷5mm; 10÷30VDC; M18; IP67; 200mA
Number of pins: 4
Overall length: 50mm
Max. operating current: 0.2A
Switching frequency max: 2.5kHz
Switch housing: M18
Range: 0...5mm
Output configuration: PNP / NO
Connection: connector M12
Kind of forehead: embedded
Type of sensor: inductive
Operating temperature: -25...70°C
IP rating: IP67
Supply voltage: 10...30V DC
Body material: teflon coated brass
Anzahl je Verpackung: 1 Stücke
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO; 0÷5mm; 10÷30VDC; M18; IP67; 200mA
Number of pins: 4
Overall length: 50mm
Max. operating current: 0.2A
Switching frequency max: 2.5kHz
Switch housing: M18
Range: 0...5mm
Output configuration: PNP / NO
Connection: connector M12
Kind of forehead: embedded
Type of sensor: inductive
Operating temperature: -25...70°C
IP rating: IP67
Supply voltage: 10...30V DC
Body material: teflon coated brass
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details BES M18MF1-PSC50A-S04G-W BALLUFF
Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NO; 0÷5mm; 10÷30VDC; M18; IP67; 200mA, Number of pins: 4, Overall length: 50mm, Max. operating current: 0.2A, Switching frequency max: 2.5kHz, Switch housing: M18, Range: 0...5mm, Output configuration: PNP / NO, Connection: connector M12, Kind of forehead: embedded, Type of sensor: inductive, Operating temperature: -25...70°C, IP rating: IP67, Supply voltage: 10...30V DC, Body material: teflon coated brass, Anzahl je Verpackung: 1 Stücke.
