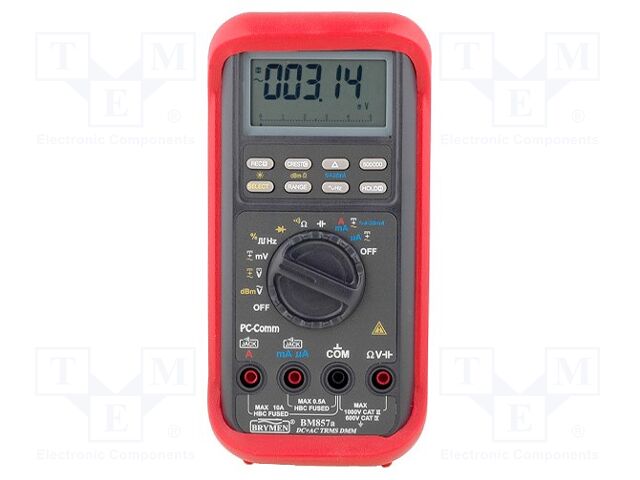

BM857A BRYMEN
Hersteller: BRYMENCategory: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (50000); Bargraph: 42segm.60x/s
Standard equipment: holster; test leads
Continuity test: acoustic indication; 20Ω...200Ω
Measuring instrument features: auto and manual ranging; automatic power-off; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; impact resistant holster; indicates incorrect connection of test leads; logging of MAX, MIN, MAX-MIN values; mains filter 50/60Hz; MIN/MAX/REL function; overload protection; test of 4-20mA current loops in control systems
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: battery 6F22 9V x1
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Type of meter: digital multimeter
Optional equipment: KITBRUA-85XA software
Kind of display used: LCD
Interface: RS232
True effective value measurement: True RMS
Measures 4-20mA current loop: 0...100%
Capacitance measuring range: 50nF; 500nF; 5µF; 50µF; 500µF; 9.999mF
DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 5A; 10A; 20A < 30s
AC current measuring range: 500µA; 5mA; 50mA; 0.5A; 5A; 10A; (20A <30s)
Diode test: 0.8mA @3.5V
Frequency measuring accuracy: ±(0.002%+4 digit)
DC voltage measuring accuracy: ±(0.03% + 2 digit)
Body dimensions: 97x55x198mm
Resistance measuring accuracy: ±(0.1%+6 digit)
DC current measuring accuracy: ±(0.1% + 20 digit)
Duty cycle factor: 0.1...99.9%
DC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV
AC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV
AC voltage measuring accuracy: ±(0.8% + 40 digit)
AC current measuring accuracy: ±(1% + 40 digit)
Capacitance measuring accuracy: ±(2%+ 3 digit)
Frequency measuring range: 5Hz...2MHz; 10...200kHz
Bargraph: 42 segm. 60x/s
Weight with battery: 500g
Duty cycle factor measurement accuracy: 3d/kHz + 2 digits
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Sampling: 5x/s
Display parameters: (50000)
Measurement: AC current; DC current; duty cycle; resistance
