Produkte > BESTAR > BPT2312H05W

BPT2312H05W BESTAR

pVersion=0046&contRep=ZT&docId=E1C0473F831BD7F1A6F5005056AB5A8F&compId=bpt2312h05w.pdf?ci_sign=a1af614c9a2eb48477264d229676e99b68e9a9e6

Hersteller: BESTAR
Category: Piezo Transducers without Generator

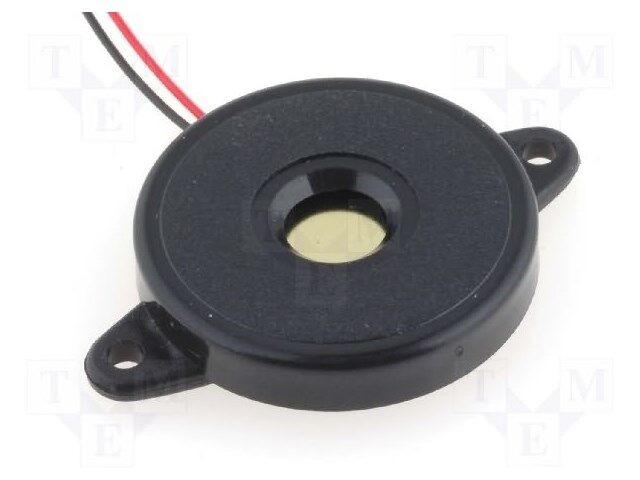

Description: Sound transducer: piezo signaller; without built-in generator
Type of sound transducer: piezo signaller
Sound transducer features: without built-in generator
Resonant frequency: 4kHz
Operating current: 10mA
Operating temperature: -20...60°C
Diameter: 23mm
Height: 5mm
Operating voltage: 1...30V AC
Mounting holes pitch: 28mm
Sound level: 80dB (d=0.1 m)
Capacitance: 24nF
Leads: cables
Capacitance measurement frequency: 120Hz
Capacitance tolerance: 30%
Body material: ABS

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details BPT2312H05W BESTAR

Category: Piezo Transducers without Generator, Description: Sound transducer: piezo signaller; without built-in generator, Type of sound transducer: piezo signaller, Sound transducer features: without built-in generator, Resonant frequency: 4kHz, Operating current: 10mA, Operating temperature: -20...60°C, Diameter: 23mm, Height: 5mm, Operating voltage: 1...30V AC, Mounting holes pitch: 28mm, Sound level: 80dB (d=0.1 m), Capacitance: 24nF, Leads: cables, Capacitance measurement frequency: 120Hz, Capacitance tolerance: 30%, Body material: ABS.
