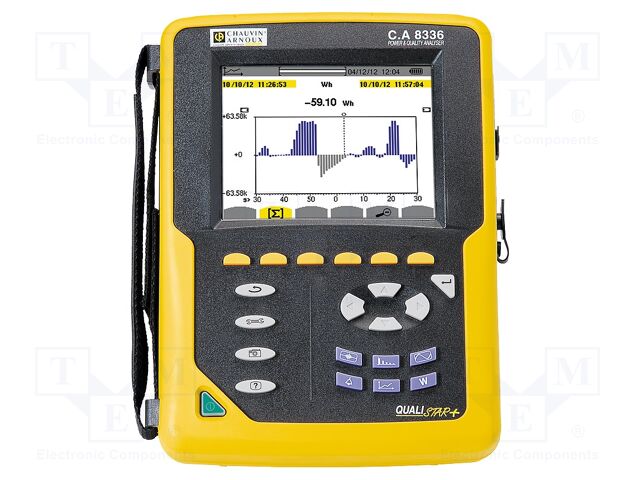

C.A 8336 CHAUVIN ARNOUX

Category: Power Quality Analyzers
Description: Meter: power quality analyser; colour,LCD TFT; Interface: USB
Power supply: rechargeable battery Ni-MH x1
IP rating: IP53
Supply voltage: 100...240V AC
Kind of network: three-phase
Interface: USB
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010; IEC 61000-4-30
Display resolution: 320x240
Dimensions: 240x180x55mm
Standard equipment: 12-colour set to mark leads and inputs; aligator clip x5; carrying case; mains cable; manual (CD); screen protector preventing scratching (set); test leads ( 5pcs.); USB cable
Measuring instrument features: automatic recognition various current detectors; more than 450 recordable values with the required parameters and graphic displays; operation of several modes in parallel; possibility of viewing the data during a campaign; up to 40 alarms can be set simultaneously
Type of meter: power quality analyser
Producer guarantee (months): 36
Measurement: AC current (with current clamps); active power; AC voltage; apparent power; DC current (option); DC voltage; distorting power; energy; harmonics; inrush current; K factor for transformers; reactive power; short or long-term flicker
Software: Power Analyser Transfer
Kind of display used: colour; LCD TFT
Number of inputs: 9
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details C.A 8336 CHAUVIN ARNOUX
Category: Power Quality Analyzers, Description: Meter: power quality analyser; colour,LCD TFT; Interface: USB, Power supply: rechargeable battery Ni-MH x1, IP rating: IP53, Supply voltage: 100...240V AC, Kind of network: three-phase, Interface: USB, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010; IEC 61000-4-30, Display resolution: 320x240, Dimensions: 240x180x55mm, Standard equipment: 12-colour set to mark leads and inputs; aligator clip x5; carrying case; mains cable; manual (CD); screen protector preventing scratching (set); test leads ( 5pcs.); USB cable, Measuring instrument features: automatic recognition various current detectors; more than 450 recordable values with the required parameters and graphic displays; operation of several modes in parallel; possibility of viewing the data during a campaign; up to 40 alarms can be set simultaneously, Type of meter: power quality analyser, Producer guarantee (months): 36, Measurement: AC current (with current clamps); active power; AC voltage; apparent power; DC current (option); DC voltage; distorting power; energy; harmonics; inrush current; K factor for transformers; reactive power; short or long-term flicker, Software: Power Analyser Transfer, Kind of display used: colour; LCD TFT, Number of inputs: 9, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote C.A 8336
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
---|---|---|---|---|---|
![]() |
C.A 8336 | Hersteller : CHAUVIN ARNOUX |
![]() Description: Meter: power quality analyser; colour,LCD TFT; Interface: USB Power supply: rechargeable battery Ni-MH x1 IP rating: IP53 Supply voltage: 100...240V AC Kind of network: three-phase Interface: USB Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010; IEC 61000-4-30 Display resolution: 320x240 Dimensions: 240x180x55mm Standard equipment: 12-colour set to mark leads and inputs; aligator clip x5; carrying case; mains cable; manual (CD); screen protector preventing scratching (set); test leads ( 5pcs.); USB cable Measuring instrument features: automatic recognition various current detectors; more than 450 recordable values with the required parameters and graphic displays; operation of several modes in parallel; possibility of viewing the data during a campaign; up to 40 alarms can be set simultaneously Type of meter: power quality analyser Producer guarantee (months): 36 Measurement: AC current (with current clamps); active power; AC voltage; apparent power; DC current (option); DC voltage; distorting power; energy; harmonics; inrush current; K factor for transformers; reactive power; short or long-term flicker Software: Power Analyser Transfer Kind of display used: colour; LCD TFT Number of inputs: 9 |
Produkt ist nicht verfügbar |
