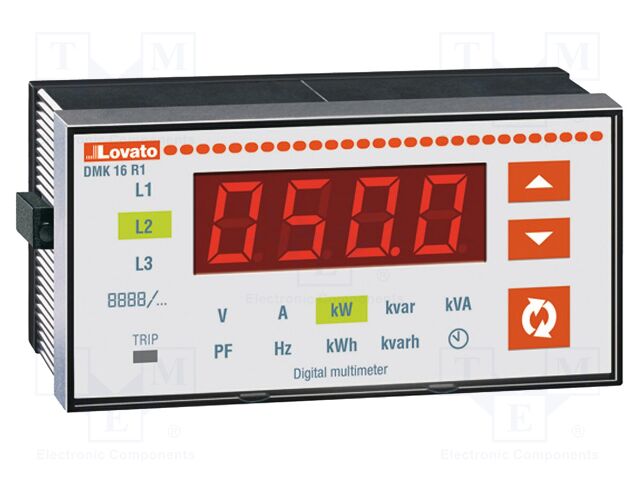

DMK 16 R1 LOVATO ELECTRIC
Hersteller: LOVATO ELECTRIC
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LED
Type of meter: network parameters
Kind of measurement: indirect with 5A current transformer
Mounting: on panel
Kind of meter: digital; mounting
Kind of display used: LED
Measurement: AC current; active power; AC voltage; apparent power; frequency; power factor; reactive power
Kind of network: three-phase
AC voltage measuring range: 35...660V
AC current measuring range: 0A...10kA1; 50mA...5.75A
Operating frequency: 45...65Hz
AC voltage measuring accuracy: ±(0,25% + 1 digit)
AC current measuring accuracy: ±(0,5% + 1 digit)
Active power measuring accuracy: ±(1% + 1 digit)
True effective value measurement: True RMS
Measuring instrument features: relay output
IP rating: IP20 at terminal side; IP54 (from the front)
Dimensions (W x H x D): 96x48mm
Mounting hole diameter: 91x45mm
Category: Power Network Meters and Analyzers
Description: Meter: network parameters; on panel; digital,mounting; LED
Type of meter: network parameters
Kind of measurement: indirect with 5A current transformer
Mounting: on panel
Kind of meter: digital; mounting
Kind of display used: LED
Measurement: AC current; active power; AC voltage; apparent power; frequency; power factor; reactive power
Kind of network: three-phase
AC voltage measuring range: 35...660V
AC current measuring range: 0A...10kA1; 50mA...5.75A
Operating frequency: 45...65Hz
AC voltage measuring accuracy: ±(0,25% + 1 digit)
AC current measuring accuracy: ±(0,5% + 1 digit)
Active power measuring accuracy: ±(1% + 1 digit)
True effective value measurement: True RMS
Measuring instrument features: relay output
IP rating: IP20 at terminal side; IP54 (from the front)
Dimensions (W x H x D): 96x48mm
Mounting hole diameter: 91x45mm
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details DMK 16 R1 LOVATO ELECTRIC
Category: Power Network Meters and Analyzers, Description: Meter: network parameters; on panel; digital,mounting; LED, Type of meter: network parameters, Kind of measurement: indirect with 5A current transformer, Mounting: on panel, Kind of meter: digital; mounting, Kind of display used: LED, Measurement: AC current; active power; AC voltage; apparent power; frequency; power factor; reactive power, Kind of network: three-phase, AC voltage measuring range: 35...660V, AC current measuring range: 0A...10kA1; 50mA...5.75A, Operating frequency: 45...65Hz, AC voltage measuring accuracy: ±(0,25% + 1 digit), AC current measuring accuracy: ±(0,5% + 1 digit), Active power measuring accuracy: ±(1% + 1 digit), True effective value measurement: True RMS, Measuring instrument features: relay output, IP rating: IP20 at terminal side; IP54 (from the front), Dimensions (W x H x D): 96x48mm, Mounting hole diameter: 91x45mm.
