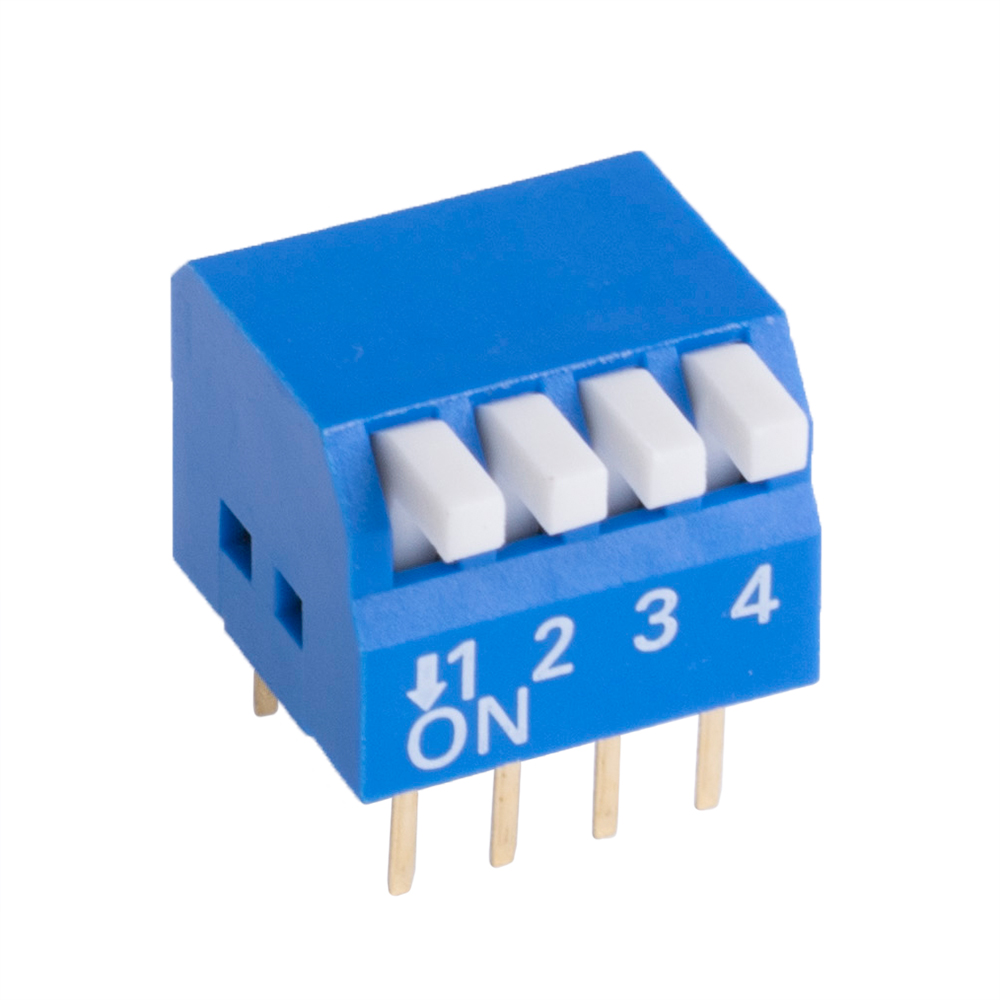

DP-04 NINIGI

Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 4; ON-OFF; 0.05A/12VDC; Pos: 2
Type of switch: DIP-SWITCH
Poles number: 4
Switching method: ON-OFF
DC contacts rating @R: 50mA / 12V DC
Number of positions: 2
Stable positions number: 2
Mounting: THT
Operating temperature: -20...70°C
Terminal pitch: 2.54mm
Row pitch: 7.62mm
Overall length: 11.34mm
Switches features: "piano" long actuator
Anzahl je Verpackung: 1 Stücke
auf Bestellung 94 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
46+ | 1.57 EUR |
61+ | 1.19 EUR |
77+ | 0.93 EUR |
94+ | 0.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details DP-04 NINIGI
Description: SWITCH PIANO DIP SPST 0.05A 24V, Features: Epoxy Sealed Terminals, Packaging: Tube, Contact Finish: Gold, Voltage Rating: 24VDC, Current Rating (Amps): 50mA, Mounting Type: Through Hole, Right Angle, Pitch: 0.100" (2.54mm), Full, Circuit: SPST, Operating Temperature: -20°C ~ 70°C, Termination Style: PC Pin, Actuator Type: Piano, Height Above Board: 0.402" (10.20mm), Actuator Level: Flush, Recessed, Washable: No, Contact Material: Phosphor Bronze, Number of Positions: 4.
Weitere Produktangebote DP-04 nach Preis ab 0.76 EUR bis 1.57 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
DP-04 | Hersteller : NINIGI |
![]() Description: Switch: DIP-SWITCH; Poles number: 4; ON-OFF; 0.05A/12VDC; Pos: 2 Type of switch: DIP-SWITCH Poles number: 4 Switching method: ON-OFF DC contacts rating @R: 50mA / 12V DC Number of positions: 2 Stable positions number: 2 Mounting: THT Operating temperature: -20...70°C Terminal pitch: 2.54mm Row pitch: 7.62mm Overall length: 11.34mm Switches features: "piano" long actuator |
auf Bestellung 94 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
![]() +1 |

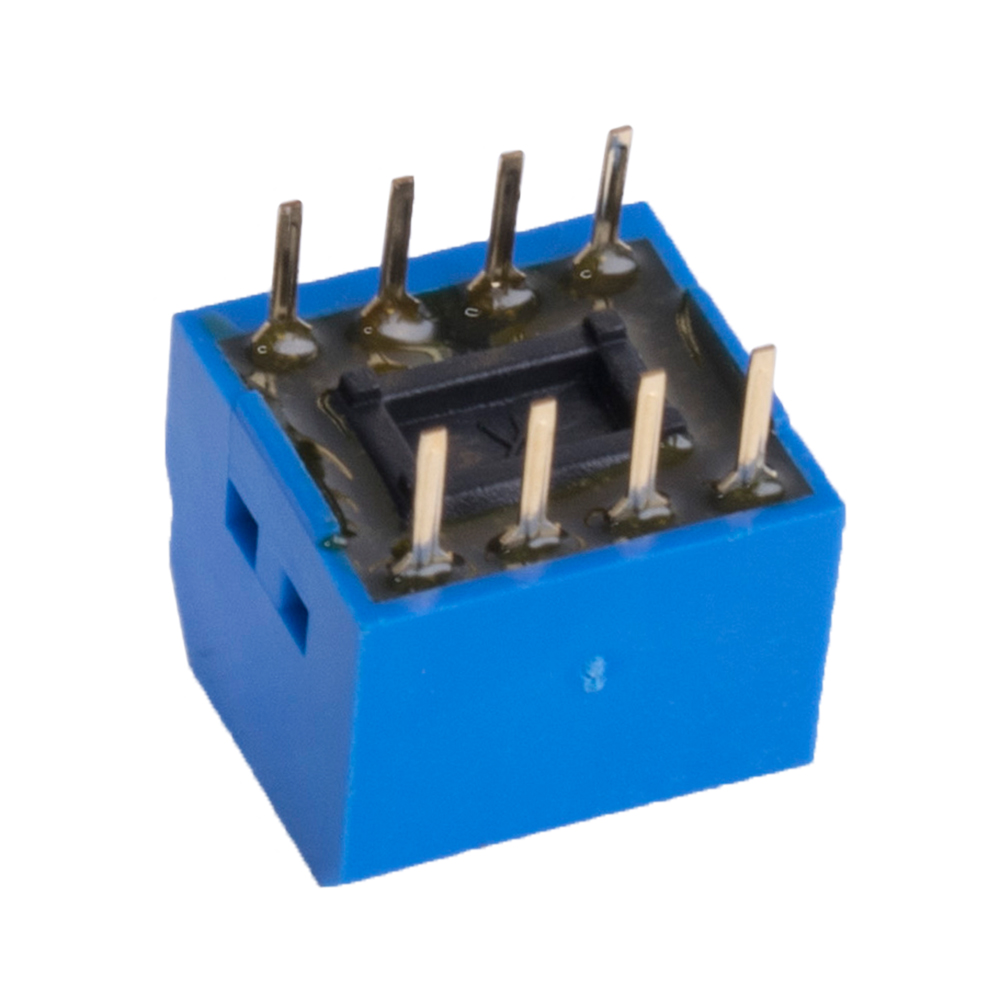

DP-04 переключатель DIP-SWITCH Produktcode: 160070
zu Favoriten hinzufügen
Lieblingsprodukt
|
Passive Bauelemente > Schalter, Schubschalter, Kippschalter (alle außer Knopf/Tasten) Gruppe: Перемикачі типу Dip-Switch Ausg. oder SMD : THT Beschreibung: DIP перемикач 4-х полюсний, PIANO 4 0,5 A / 12 VDC |
Produkt ist nicht verfügbar
|
||||||||||||
DP04 | Hersteller : APEM Inc. |
![]() Features: Epoxy Sealed Terminals Packaging: Tube Contact Finish: Gold Voltage Rating: 24VDC Current Rating (Amps): 50mA Mounting Type: Through Hole, Right Angle Pitch: 0.100" (2.54mm), Full Circuit: SPST Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Actuator Type: Piano Height Above Board: 0.402" (10.20mm) Actuator Level: Flush, Recessed Washable: No Contact Material: Phosphor Bronze Number of Positions: 4 |
Produkt ist nicht verfügbar |
||||||||||||
![]() |
DP04 | Hersteller : Apem |
![]() |
Produkt ist nicht verfügbar |
