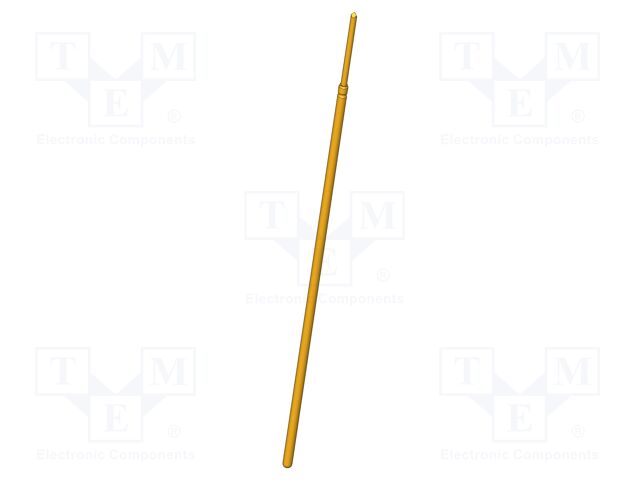

E-050 307 050 A 2000 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4.3mm; 3A; Ø: 0.5mm
Type of test accessories: test needle
Operational spring compression: 4.3mm
Maksimum spring compression: 6.35mm
Current rating: 3A
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Contact material: CuBe
Blade tip shape: chisel
Tip diameter: 0.5mm
Manufacturer series: E-050
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 43.2mm
Spring compression force: 2N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details E-050 307 050 A 2000 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4.3mm; 3A; Ø: 0.5mm, Type of test accessories: test needle, Operational spring compression: 4.3mm, Maksimum spring compression: 6.35mm, Current rating: 3A, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Contact material: CuBe, Blade tip shape: chisel, Tip diameter: 0.5mm, Manufacturer series: E-050, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 43.2mm, Spring compression force: 2N, Anzahl je Verpackung: 1 Stücke.
