E-075 298 064 A 2800

E-075 298 064 A 2800 INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA6B7D9D8415B20D6&compId=E-075-0029.pdf?ci_sign=42fd015ecfd403fd0e971ad72e863e0a87d5addd Hersteller: INGUN
Category: Contact Probes

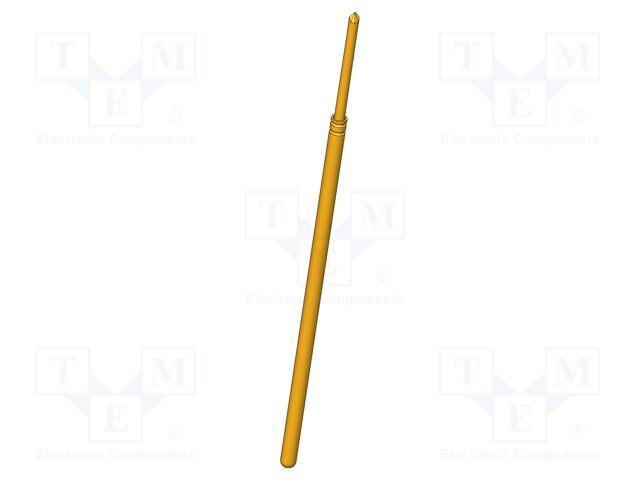

Description: Test needle; Operational spring compression: 4.3mm; 3A; Ø: 0.64mm
Manufacturer series: E-075
Current rating: 3A
Contact material: steel
Contact plating: gold-plated
Type of test accessories: test needle
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Blade tip shape: dagger; sharp
Operating temperature: -40...80°C
Tip diameter: 0.64mm
Operational spring compression: 4.3mm
Maksimum spring compression: 6.35mm
Max. contact resistance:: 20mΩ
Length: 33.1mm
Spring compression force: 2.8N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details E-075 298 064 A 2800 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4.3mm; 3A; Ø: 0.64mm, Manufacturer series: E-075, Current rating: 3A, Contact material: steel, Contact plating: gold-plated, Type of test accessories: test needle, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Blade tip shape: dagger; sharp, Operating temperature: -40...80°C, Tip diameter: 0.64mm, Operational spring compression: 4.3mm, Maksimum spring compression: 6.35mm, Max. contact resistance:: 20mΩ, Length: 33.1mm, Spring compression force: 2.8N, Anzahl je Verpackung: 1 Stücke.
