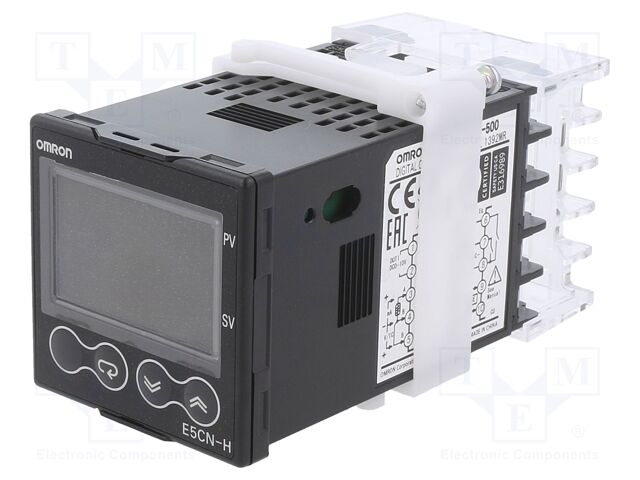

E5CN-HC2MD-500 24VAC/DC OMRON

Category: Temperature Regulators
Description: Module: regulator; temperature; SPST-NO; OUT 2: 0÷20mA,4÷20mA
Mounting: on panel
Operating temperature: -10...55°C
Kind of display used: colour; LCD
Kind of output 1: SPST-NO
Kind of output 2: 0...20mA; 4...20mA
Display height 1: 11mm
Display 2 height: 6.5mm
IP rating: IP66 (from the front)
Input 1 properties: contact free; RTD; thermocouple
Supply voltage: 24V AC; 24V DC
Mounting hole diameter: 45x45mm
Body dimensions: 48x48x96mm
Kind of temperature sensor: contact free; JPt100; Pt100; thermocouple B; thermocouple E; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple R; thermocouple S; thermocouple T; thermocouple U
Type of module: regulator
Controlled parameter: temperature
Controlled parameter range: -19999...32400
The programming method: foil keypad
Regulation for output 1: 2PID; AUTOTUNING; ON-OFF; SELFTUNING
Additional functions: LED status indicator; optional RS485 communication port; output 2 - operational output;
Manufacturer series: E5CN
Display parameters: 5 digits
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details E5CN-HC2MD-500 24VAC/DC OMRON
Category: Temperature Regulators, Description: Module: regulator; temperature; SPST-NO; OUT 2: 0÷20mA,4÷20mA, Mounting: on panel, Operating temperature: -10...55°C, Kind of display used: colour; LCD, Kind of output 1: SPST-NO, Kind of output 2: 0...20mA; 4...20mA, Display height 1: 11mm, Display 2 height: 6.5mm, IP rating: IP66 (from the front), Input 1 properties: contact free; RTD; thermocouple, Supply voltage: 24V AC; 24V DC, Mounting hole diameter: 45x45mm, Body dimensions: 48x48x96mm, Kind of temperature sensor: contact free; JPt100; Pt100; thermocouple B; thermocouple E; thermocouple J; thermocouple K; thermocouple L; thermocouple N; thermocouple R; thermocouple S; thermocouple T; thermocouple U, Type of module: regulator, Controlled parameter: temperature, Controlled parameter range: -19999...32400, The programming method: foil keypad, Regulation for output 1: 2PID; AUTOTUNING; ON-OFF; SELFTUNING, Additional functions: LED status indicator; optional RS485 communication port; output 2 - operational output;, Manufacturer series: E5CN, Display parameters: 5 digits, Anzahl je Verpackung: 1 Stücke.
