Produkte > HT INSTRUMENTS > FLASHMETERPRO

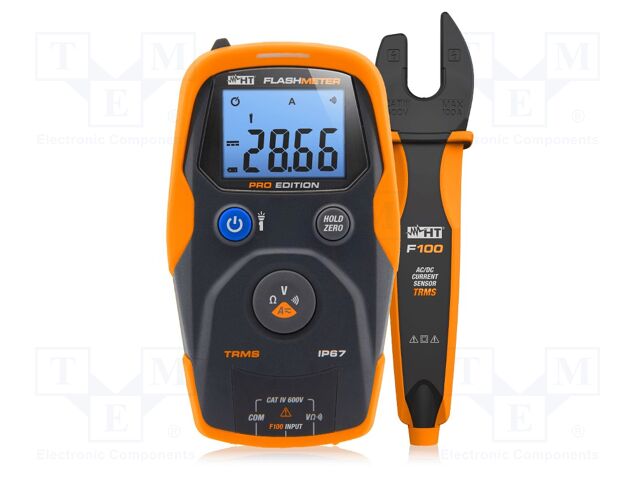

FLASHMETERPRO

FLASHMETERPRO HT INSTRUMENTS

pVersion=0046&contRep=ZT&docId=005056AB281E1FD08CAB4B18A74CE0DE&compId=HTI-HR000PRO-DTE.pdf?ci_sign=ef5cd19db1245ee0d3c22019b18fe40863aa9e58 pVersion=0046&contRep=ZT&docId=005056AB281E1FD08CAB4FFE19A100DE&compId=HTI-HR000PRO-INS.pdf?ci_sign=c51c988544dbeecf6bf7ebe63e56ff10de69c7a6 Hersteller: HT INSTRUMENTS
Category: Portable digital multimeters
Description: Digital multimeter; Øcable: 10mm; LCD; 4-digit; VDC: 400V,600V
IP rating: IP67
Conform to the norm: CAT III 600V; CAT IV 600V; EN 61010-1; EN 61326-1
Illumination: yes
Dimensions: 140x80x45mm
Standard equipment: calibration certificate; carrying case; current clamp; test leads ( 2pcs.); user's manual
Measuring instrument features: AUTO HOLD; automatic detection of measurement parameter; automatic power-off; auto polarity; autoranging; built-in torch; contactless voltage detector; low battery indicator
Type of meter: digital multimeter
Continuity test: <40Ω
Pollution degree: 2
Max. diameter of measured cable: 10mm
True effective value measurement: True RMS
Measurement: AC current (with current clamps); AC voltage; continuity; DC current (with current clamps); DC voltage; resistance
AC current measuring range: 10A; 100A
Resistance measuring range: 40Ω; 0.4kΩ; 4kΩ; 40kΩ; 400kΩ
DC current measuring range: 10A; 100A
DC voltage measuring range: 400V; 600V
AC voltage measuring range: 400V; 600V
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Display parameters: 4-digit
AC current measuring accuracy: ±(3% + 8 digit)
DC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring accuracy: ±(3% + 8 digit)
AC voltage measuring accuracy: ±(1% + 5 digit)
Resistance measuring accuracy: ±(2%+10 digit)
Operating temperature: 0...50°C
Kind of display used: LCD
Power supply: battery LR03 AAA 1,5V x2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details FLASHMETERPRO HT INSTRUMENTS

Category: Portable digital multimeters, Description: Digital multimeter; Øcable: 10mm; LCD; 4-digit; VDC: 400V,600V, IP rating: IP67, Conform to the norm: CAT III 600V; CAT IV 600V; EN 61010-1; EN 61326-1, Illumination: yes, Dimensions: 140x80x45mm, Standard equipment: calibration certificate; carrying case; current clamp; test leads ( 2pcs.); user's manual, Measuring instrument features: AUTO HOLD; automatic detection of measurement parameter; automatic power-off; auto polarity; autoranging; built-in torch; contactless voltage detector; low battery indicator, Type of meter: digital multimeter, Continuity test: .
