Produkte > INGUN > GKS-075 209 064 A 1000

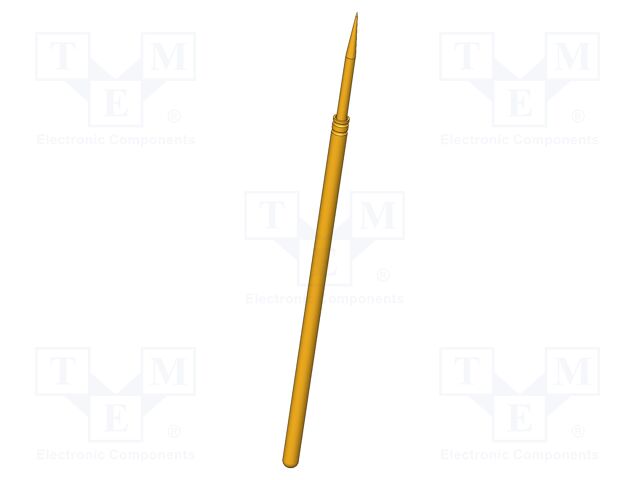

GKS-075 209 064 A 1000

GKS-075 209 064 A 1000 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8EFEE621AF1300D5&compId=GKS-075-0054.pdf?ci_sign=37cc9b562ec372a8b1dad38ffb905bbe0bb59e69 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 4.3mm; 6.35mm; 3A; steel; GKS-075
Type of test accessories: test needle
Operational spring compression: 4.3mm
Maksimum spring compression: 6.35mm
Current rating: 3A
Contact material: steel
Contact plating: gold-plated
Tip diameter: 0.63mm
Blade tip shape: flexible; needle
Manufacturer series: GKS-075
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Related items: KS-075
Length: 33.1mm
Spring compression force: 1N
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-075 209 064 A 1000 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4.3mm; 6.35mm; 3A; steel; GKS-075, Type of test accessories: test needle, Operational spring compression: 4.3mm, Maksimum spring compression: 6.35mm, Current rating: 3A, Contact material: steel, Contact plating: gold-plated, Tip diameter: 0.63mm, Blade tip shape: flexible; needle, Manufacturer series: GKS-075, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Related items: KS-075, Length: 33.1mm, Spring compression force: 1N.
