Produkte > INGUN > GKS-100 288 150 A 1500 C

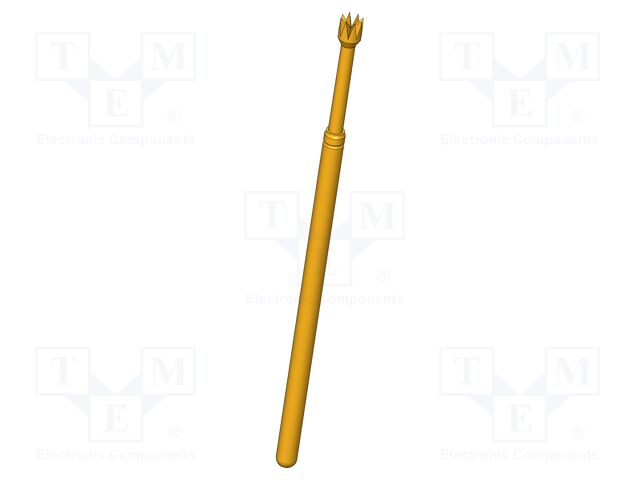

GKS-100 288 150 A 1500 C

GKS-100 288 150 A 1500 C INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDE9B843715CF88C0D6&compId=GKS-100-1050.pdf?ci_sign=4b65d9d0b0171fc105952c2fbeae61ab4ea96887 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4.3mm; 5A; Ø: 1.5mm
Manufacturer series: GKS-100
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 1.5mm
Operational spring compression: 4.3mm
Contact material: steel
Maksimum spring compression: 6.35mm
Max. contact resistance:: 100mΩ
Length: 33.4mm
Spring compression force: 1.5N
Current rating: 5A
Related items: KS-100WL; KS-10030G; KS-10047; KS-10047G; KS-1003005; KS-1003025; KS-1003040; KS-1004705; KS-1004725; KS-1004740
Blade tip shape: 8-point; corona
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-100 288 150 A 1500 C INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4.3mm; 5A; Ø: 1.5mm, Manufacturer series: GKS-100, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Type of test accessories: test needle, Operating temperature: -100...200°C, Tip diameter: 1.5mm, Operational spring compression: 4.3mm, Contact material: steel, Maksimum spring compression: 6.35mm, Max. contact resistance:: 100mΩ, Length: 33.4mm, Spring compression force: 1.5N, Current rating: 5A, Related items: KS-100WL; KS-10030G; KS-10047; KS-10047G; KS-1003005; KS-1003025; KS-1003040; KS-1004705; KS-1004725; KS-1004740, Blade tip shape: 8-point; corona, Anzahl je Verpackung: 1 Stücke.
