Produkte > INGUN > GKS-100 307 170 A 4000 E
GKS-100 307 170 A 4000 E

GKS-100 307 170 A 4000 E INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDE9B843BC5435820D6&compId=GKS-100-1144.pdf?ci_sign=759e49bda55807485fe72d0a799d8b124262c77c Hersteller: INGUN
Category: Contact Probes

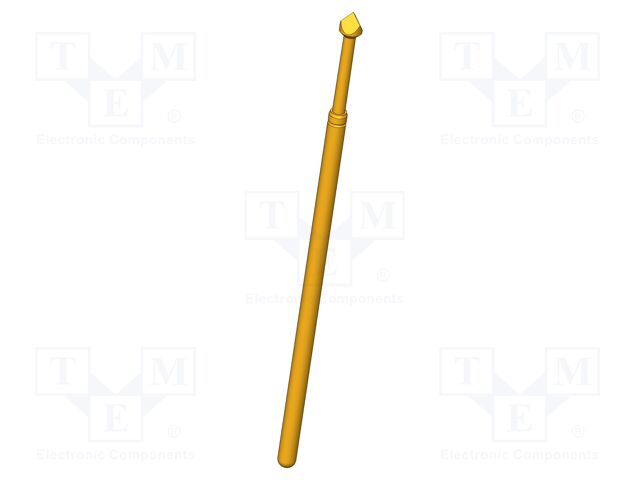

Description: Test needle; Operational spring compression: 4.3mm; 8A; Ø: 1.7mm
Blade tip shape: chisel
Contact material: CuBe
Contact plating: gold-plated
Related items: KS-100WL; KS-10030G; KS-10047; KS-10047G; KS-1003005; KS-1003025; KS-1003040; KS-1004705; KS-1004725; KS-1004740
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 1.7mm
Operational spring compression: 4.3mm
Maksimum spring compression: 6.35mm
Max. contact resistance:: 20mΩ
Length: 38.4mm
Spring compression force: 4N
Current rating: 8A
Manufacturer series: GKS-100
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-100 307 170 A 4000 E INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4.3mm; 8A; Ø: 1.7mm, Blade tip shape: chisel, Contact material: CuBe, Contact plating: gold-plated, Related items: KS-100WL; KS-10030G; KS-10047; KS-10047G; KS-1003005; KS-1003025; KS-1003040; KS-1004705; KS-1004725; KS-1004740, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 1.7mm, Operational spring compression: 4.3mm, Maksimum spring compression: 6.35mm, Max. contact resistance:: 20mΩ, Length: 38.4mm, Spring compression force: 4N, Current rating: 8A, Manufacturer series: GKS-100, Anzahl je Verpackung: 1 Stücke.
