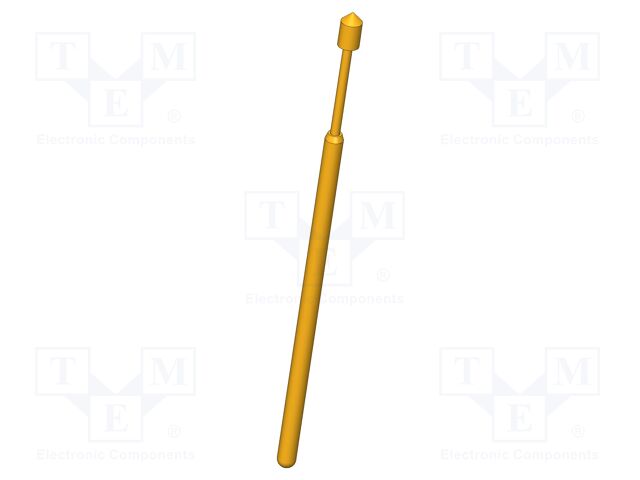

GKS-101 308 115 A 0800 C INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 4A; Ø: 1.15mm
Type of test accessories: test needle
Contact plating: gold-plated
Manufacturer series: GKS-101
Test accessories features: magnetic; self-cleaning
Length: 27.3mm
Current rating: 4A
Contact material: CuBe
Blade tip shape: sharp
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.15mm
Spring compression force: 0.8N
Mounting: push-in
Max. contact resistance:: 100mΩ
Operating temperature: -100...200°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-101 308 115 A 0800 C INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 4A; Ø: 1.15mm, Type of test accessories: test needle, Contact plating: gold-plated, Manufacturer series: GKS-101, Test accessories features: magnetic; self-cleaning, Length: 27.3mm, Current rating: 4A, Contact material: CuBe, Blade tip shape: sharp, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.15mm, Spring compression force: 0.8N, Mounting: push-in, Max. contact resistance:: 100mΩ, Operating temperature: -100...200°C, Anzahl je Verpackung: 1 Stücke.
