Produkte > INGUN > GKS-112 201 100 R 0602
GKS-112 201 100 R 0602

GKS-112 201 100 R 0602 INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A08614A65C60D6&compId=GKS-112-1252.pdf?ci_sign=7f989f4bb703aacd7c80c64497426fc969a6a39a Hersteller: INGUN
Category: Contact Probes

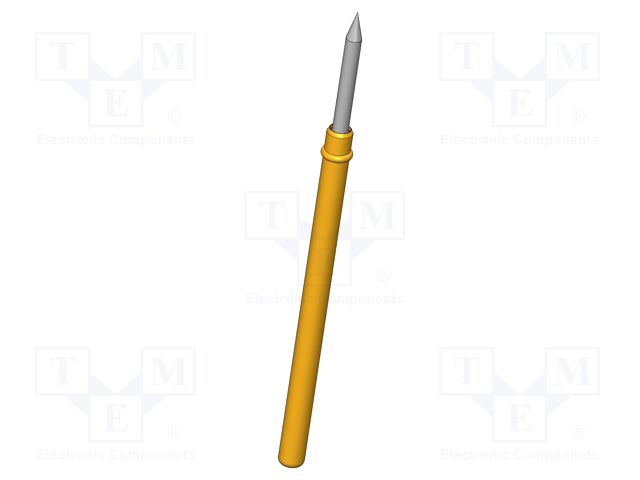

Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 0.6N
Length: 32.3mm
Contact material: steel
Blade tip shape: needle
Type of test accessories: test needle
Maksimum spring compression: 8mm
Operational spring compression: 4mm
Test accessories features: magnetic; self-cleaning
Manufacturer series: GKS-112
Spring compression force: 0.6N
Tip diameter: 1mm
Mounting: push-in
Contact plating: rhodium plated
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Current rating: 5A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 201 100 R 0602 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 0.6N, Length: 32.3mm, Contact material: steel, Blade tip shape: needle, Type of test accessories: test needle, Maksimum spring compression: 8mm, Operational spring compression: 4mm, Test accessories features: magnetic; self-cleaning, Manufacturer series: GKS-112, Spring compression force: 0.6N, Tip diameter: 1mm, Mounting: push-in, Contact plating: rhodium plated, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Current rating: 5A, Anzahl je Verpackung: 1 Stücke.
