Produkte > INGUN > GKS-112 214 130 R 2209
GKS-112 214 130 R 2209

GKS-112 214 130 R 2209 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A077D8538120D6&compId=GKS-112-0175.pdf?ci_sign=8b3020a2da2eac357022bfdb2660531953843d31 Hersteller: INGUN
Category: Contact Probes

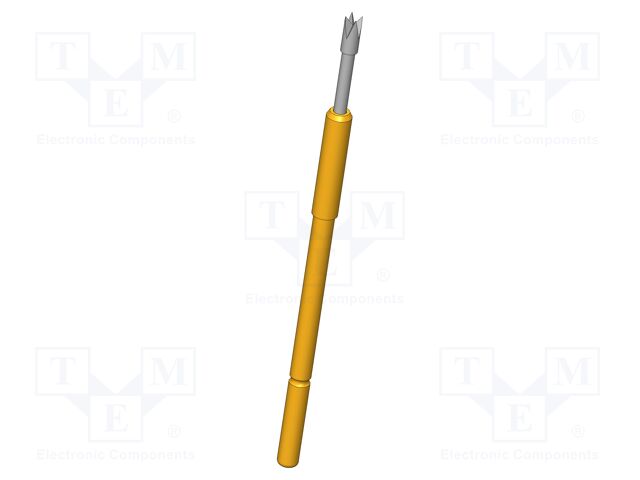

Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; steel; Ø: 1.3mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact material: steel
Contact plating: rhodium plated
Tip diameter: 1.3mm
Blade tip shape: 4-point; corona
Manufacturer series: GKS-112
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 39.3mm
Spring compression force: 2.25N
Max. contact resistance:: 20mΩ
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-112 214 130 R 2209 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; steel; Ø: 1.3mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact material: steel, Contact plating: rhodium plated, Tip diameter: 1.3mm, Blade tip shape: 4-point; corona, Manufacturer series: GKS-112, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 39.3mm, Spring compression force: 2.25N, Max. contact resistance:: 20mΩ.
