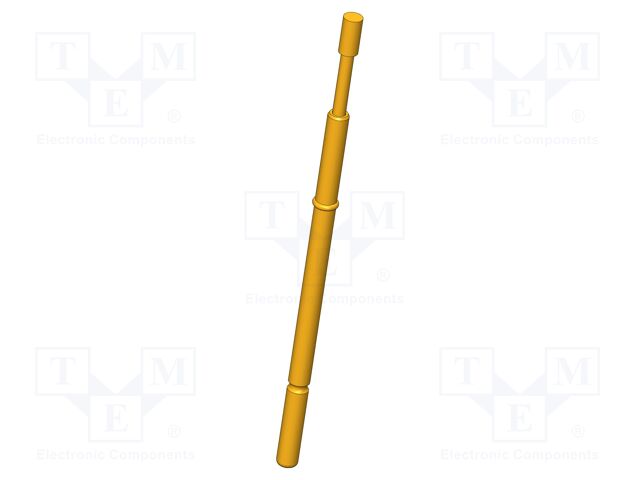

GKS-112 302 150 A 0608 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.5mm
Operating temperature: -40...80°C
Manufacturer series: GKS-112
Blade tip shape: cylinder; flat
Contact plating: gold-plated
Test accessories features: magnetic
Mounting: push-in
Type of test accessories: test needle
Tip diameter: 1.5mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 20mΩ
Length: 38.7mm
Spring compression force: 0.6N
Current rating: 5A
Contact material: CuBe
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 302 150 A 0608 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.5mm, Operating temperature: -40...80°C, Manufacturer series: GKS-112, Blade tip shape: cylinder; flat, Contact plating: gold-plated, Test accessories features: magnetic, Mounting: push-in, Type of test accessories: test needle, Tip diameter: 1.5mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 20mΩ, Length: 38.7mm, Spring compression force: 0.6N, Current rating: 5A, Contact material: CuBe, Anzahl je Verpackung: 1 Stücke.
