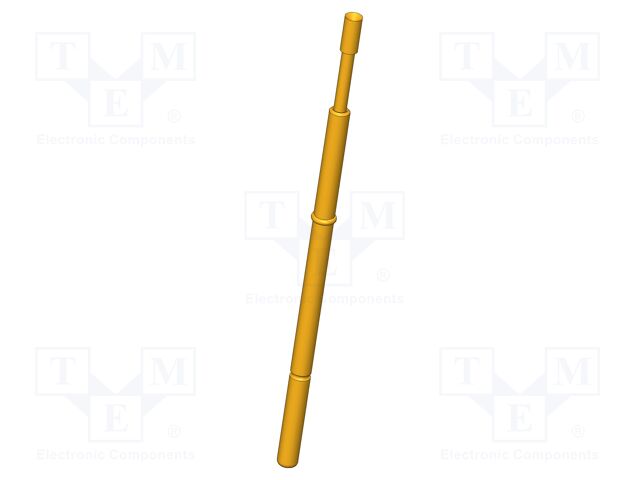

GKS-112 303 140 A 3010 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.4mm
Mounting: push-in
Contact plating: gold-plated
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Current rating: 8A
Length: 40.3mm
Contact material: CuBe
Blade tip shape: cone; inverted
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1.4mm
Test accessories features: magnetic
Manufacturer series: GKS-112
Spring compression force: 3N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 303 140 A 3010 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.4mm, Mounting: push-in, Contact plating: gold-plated, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Current rating: 8A, Length: 40.3mm, Contact material: CuBe, Blade tip shape: cone; inverted, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1.4mm, Test accessories features: magnetic, Manufacturer series: GKS-112, Spring compression force: 3N, Anzahl je Verpackung: 1 Stücke.
