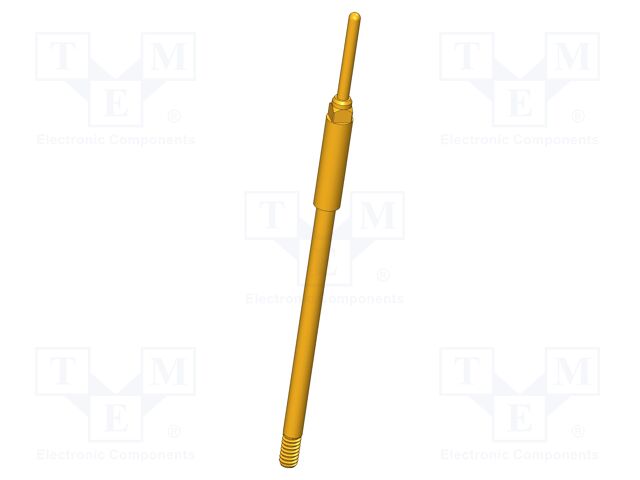

GKS-112 305 100 A 1510 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N
Mounting: screw-in
Operating temperature: -40...80°C
Operational spring compression: 4mm
Length: 44.3mm
Maksimum spring compression: 8mm
Max. contact resistance:: 20mΩ
Spring compression force: 1.5N
Current rating: 8A
Manufacturer series: GKS-112
Contact material: CuBe
Contact plating: gold-plated
Test accessories features: magnetic
Blade tip shape: round
Type of test accessories: test needle
Tip diameter: 1mm
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 305 100 A 1510 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N, Mounting: screw-in, Operating temperature: -40...80°C, Operational spring compression: 4mm, Length: 44.3mm, Maksimum spring compression: 8mm, Max. contact resistance:: 20mΩ, Spring compression force: 1.5N, Current rating: 8A, Manufacturer series: GKS-112, Contact material: CuBe, Contact plating: gold-plated, Test accessories features: magnetic, Blade tip shape: round, Type of test accessories: test needle, Tip diameter: 1mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-112 305 100 A 1510 M
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-112 305 100 A 1510 M | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N Mounting: screw-in Operating temperature: -40...80°C Operational spring compression: 4mm Length: 44.3mm Maksimum spring compression: 8mm Max. contact resistance:: 20mΩ Spring compression force: 1.5N Current rating: 8A Manufacturer series: GKS-112 Contact material: CuBe Contact plating: gold-plated Test accessories features: magnetic Blade tip shape: round Type of test accessories: test needle Tip diameter: 1mm |
Produkt ist nicht verfügbar |
