GKS-112 306 130 R 0810 INGUN
Hersteller: INGUNCategory: Contact Probes

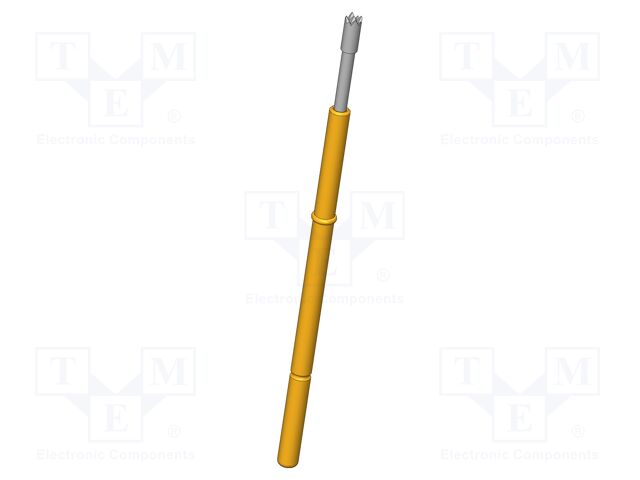

Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.3mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact material: CuBe
Blade tip shape: serrated
Tip diameter: 1.3mm
Manufacturer series: GKS-112
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic
Length: 40.3mm
Spring compression force: 0.8N
Contact plating: rhodium plated
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 306 130 R 0810 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.3mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact material: CuBe, Blade tip shape: serrated, Tip diameter: 1.3mm, Manufacturer series: GKS-112, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic, Length: 40.3mm, Spring compression force: 0.8N, Contact plating: rhodium plated, Max. contact resistance:: 20mΩ, Anzahl je Verpackung: 1 Stücke.
